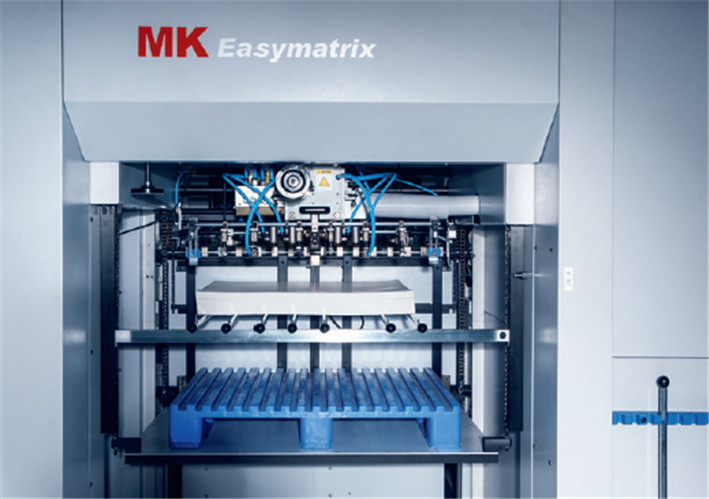

Non-stop Feeder
Suction head for paper, board and corrugated board
Suction head with quick positioning function
Pile platform with motorized side pile alignment
Mechanical double sheet detection

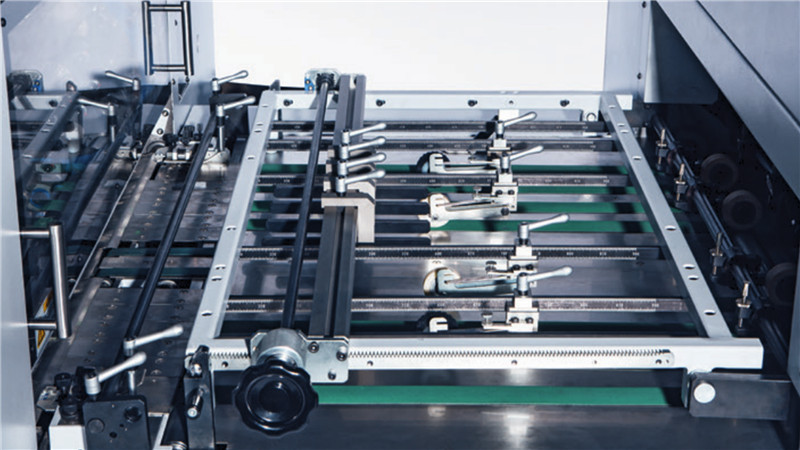

Feed Table
Register system
Central adjustment system for rollers and brushes
Pull/push side lay on both sides
Four front lays with active optical monitoring
Sheet slow down device
Cutting Station
Register system
Motorized cutting pressure adjustment

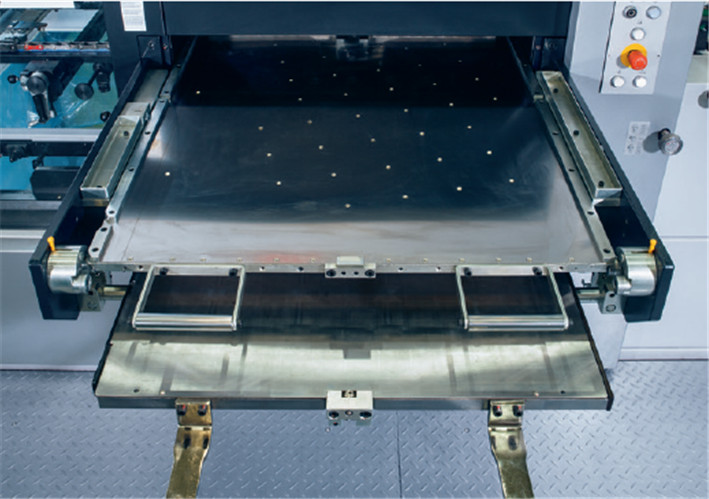

Cutting plate fine adjustment
Air cushion for easy cutting plate handling
Quick lock chase
Chase Changer (optional)

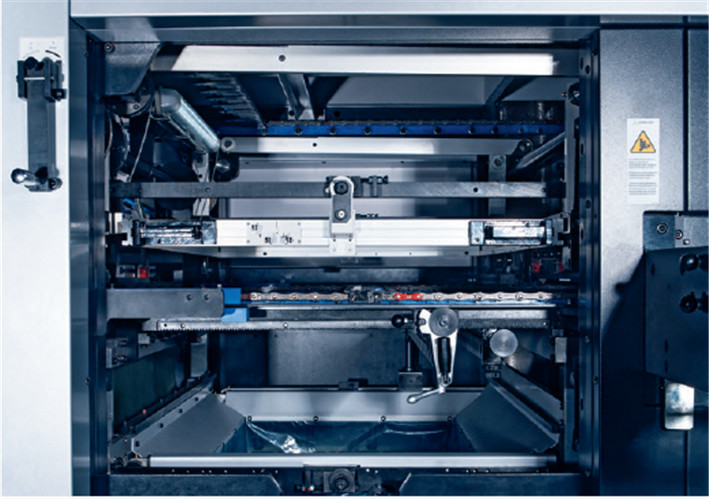

Stripping Station
Quick lock device for middle stripping board
Electronic sheet monitoring
Quick lock frame (optional)
Pre-make-ready table (optional)
Systems Engineering

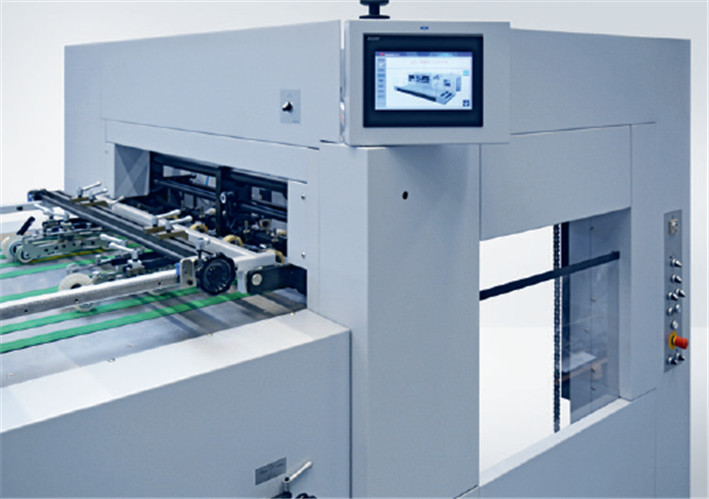

Touch Screen for machine operation
Local operations panels
CE conformity
GS certificate

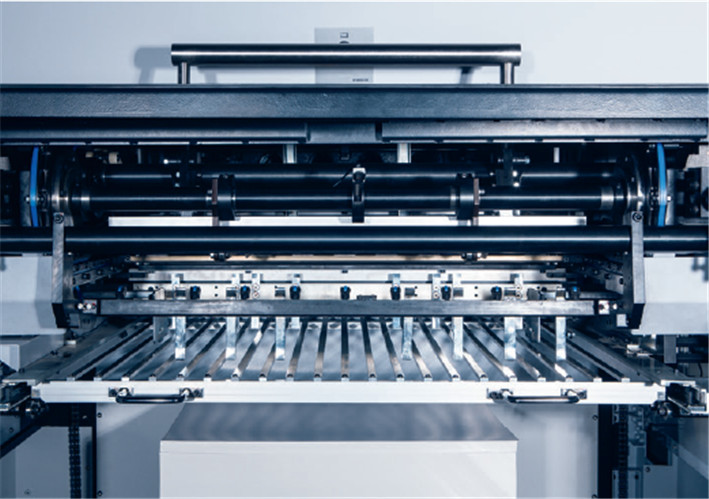

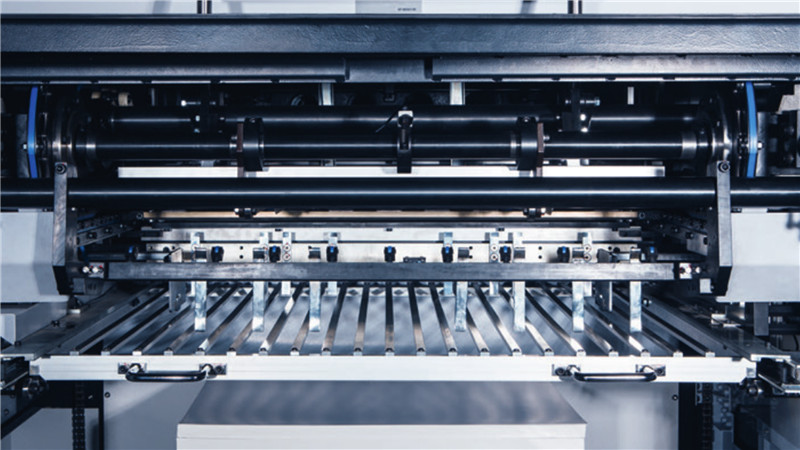

Delivery
Non-stop rake
Pneumatic flap for test sheet removal
Sheet size adjustment with position indicators
Sheet brake brush
Tape inserter (optional)
| Suitable material: | |
| Paper (min.) | 90g/m2 |
| Carton Board (max.) | 2,000 g/m2 |
| Corrugated Board (max.) | 4 mm |
| Performance data: | |
| Sheet size (max.) | 750x 1,060 mm |
| Sheet size (min.) | 360 X 400 mm |
| Cutting pressure (max.) | 2.6 MN / 260t |
| Machine speed (max.) | 7,700 s/h |
| Pile heights (incl. Pallet): | |
| Feeder pile height (max.) | |
| - w/o non-stop | 1 ,200 mm |
| - in non-stop operation | 900mm |
| Delivery pile height (max.) | 1 ,200 mm |
For more information, please download the PDF brochure, or click "Contact" to subscribe
Click download
-
What materials can a high speed die cutter process?
A high speed die cutter can process various packaging materials, including paperboard, coated paper, corrugated board, and other paper-based substrates. The suitable material range depends on the machine configuration, material specifications, and production requirements.
-
How does a high speed die cutter improve packaging production efficiency?
A high speed die cutter improves production efficiency through high-speed operation, precise sheet feeding, and stable die-cutting performance. It helps packaging manufacturers increase output, reduce manual intervention, and maintain consistent quality during large-volume production.
-
What packaging applications are suitable for a high speed die cutter?
A high speed die cutter is widely used for producing folding cartons, pharmaceutical boxes, food packaging, cosmetic boxes, and other paper packaging products. It provides accurate cutting, creasing, and stripping solutions for various packaging applications.
-
How does Masterwork ensure the stability and accuracy of high speed die cutters?
MK Masterwork high speed die cutters are designed with precise control systems, reliable feeding mechanisms, and stable die-cutting structures to support continuous production. Through professional machine configuration and technical support, Masterwork helps customers achieve consistent performance in demanding production environments.
-
Does Masterwork provide installation and technical support for high speed die cutters?
Yes. Masterwork provides complete support including equipment selection, installation guidance, operator training, maintenance advice, and after-sales service. The technical team works with customers to ensure smooth machine operation and long-term production reliability.
