Cold Foil Stamping Machine

MK 1020CF

Based on the demand of cold foil stamping in tobacco and beverages packaging, cosmetics packaging, self-adhesive paper, etc. MK 1020CF with the friendly operate, high automation production and excellent stamping effect to improve the quality of technology.

Inquire Now
  • Product Features
  • Technical Parameter
  • PDF Brochure
  • Product Video

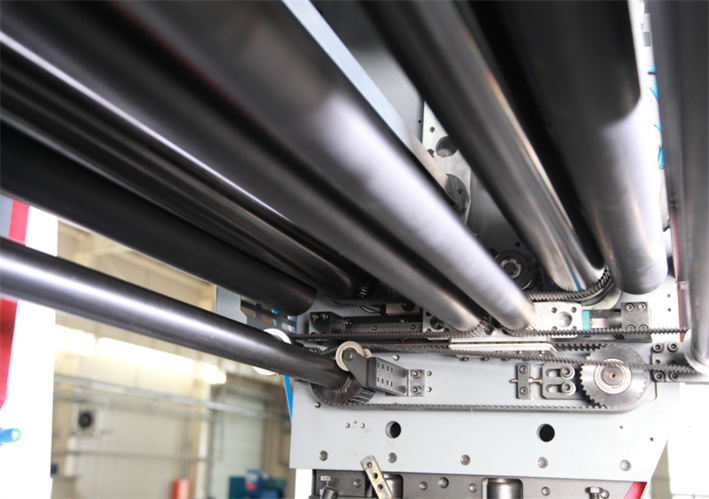

Pendulum lever step device

Pendulum lever step device

  • The patented pendulum lever step device with Germany imported high precision servo system, which could positioning accurately, step stabilization to save the cost of cold foil die.

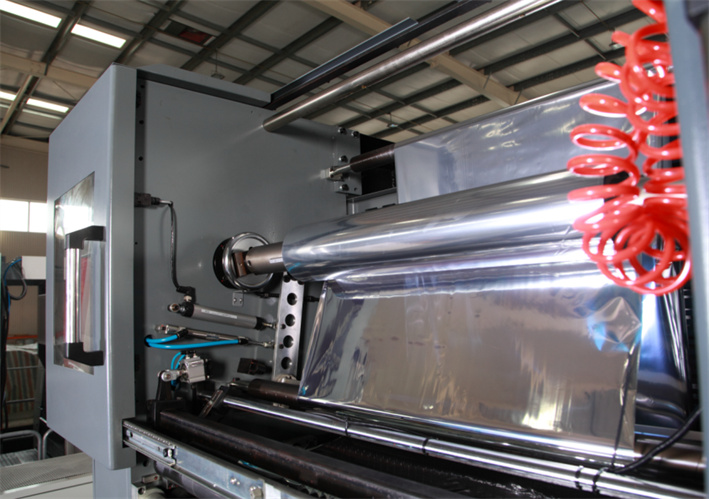

Tension of the floating roller

Tension of the floating roller

  • Displacement sensor equipped with high quality tension of the floating roller to make sure constant control of the aluminum foil.
  • Rewind/Unwind roller that controlled by imported servo system

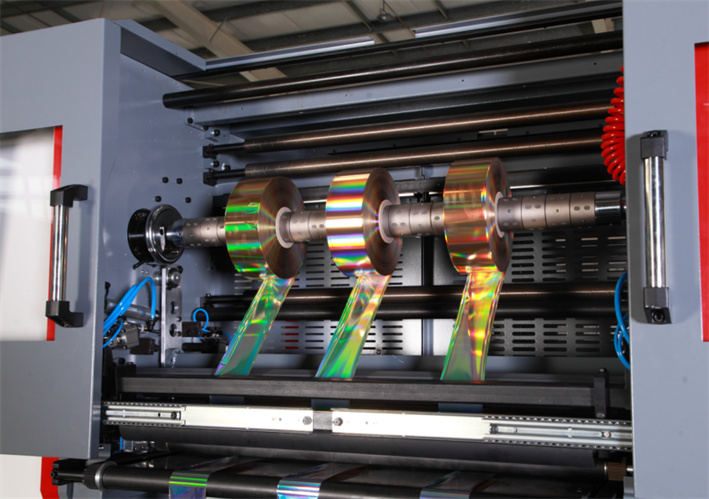

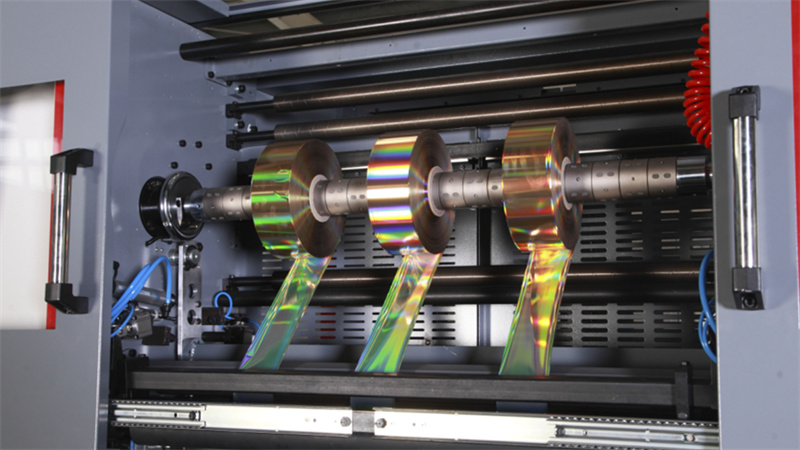

Rewind/Unwind Shaft

Rewind/Unwind Shaft

  • Equipped with air shaft, safety chucks with quick assemble/unassembled, easy to operate.

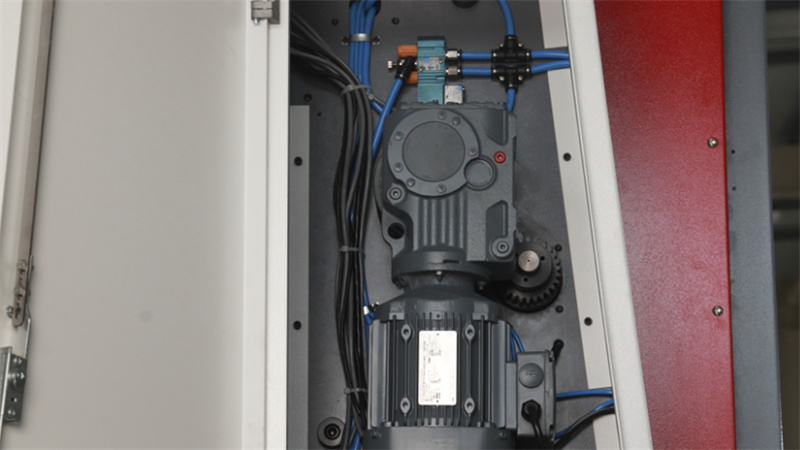

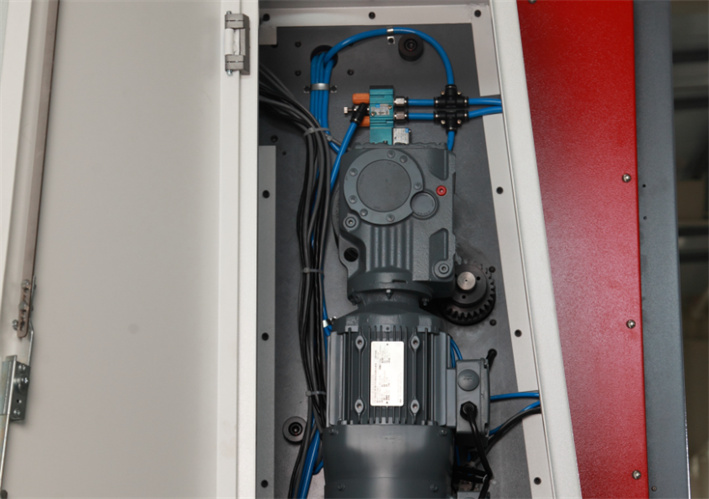

Rewind/Unwind Control

Rewind/Unwind Control

  • Adopt gear motor to control the rewind/unwind, quality safety.

Systems Engineering

Systems Engineering

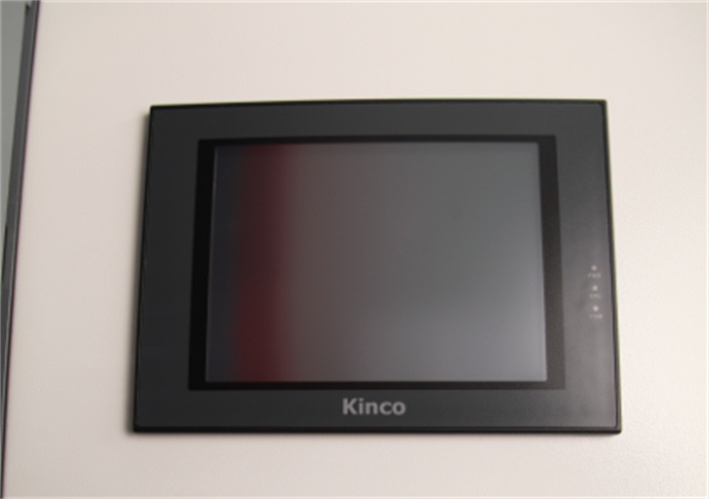

  • 8 inch color touch screen , easy to operate
  • Pendulum lever leapfrog mechanism
  • Displacement sensor
  • Pneumatic rewind/unwind shaft
  • Quick assemble safety clamp
Technical DataMK1020CF
Width of foil400~970mm
Foil stamping size in running direction360~700mm
Suitable Material90~350 g/m2
Machine Speed8000s/h
Foil diameterl600mm
Air Supply0.7Mpa,2.0m³/min
Dimension2,060mm X 1,914mmX 1,334mm
Weight≈1.4T (excl. foil)


For more information, please download the PDF brochure, or click "Contact" to subscribe

Click download

For more information, please download the PDF brochure, or click "Contact" to subscribe
