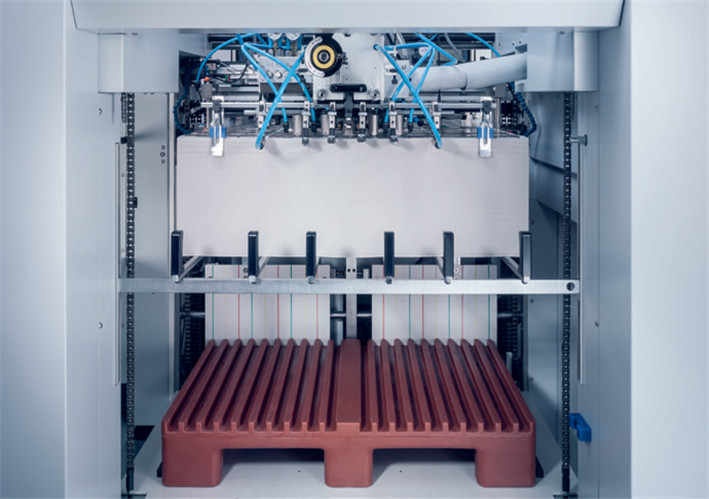

Non-stop Feeder
Suction head for paper, cardboard and corrugated cardboard
Suction head with quickpositioning function
Pile platform with motorized pile side alignment
Mechanical doublesheet control

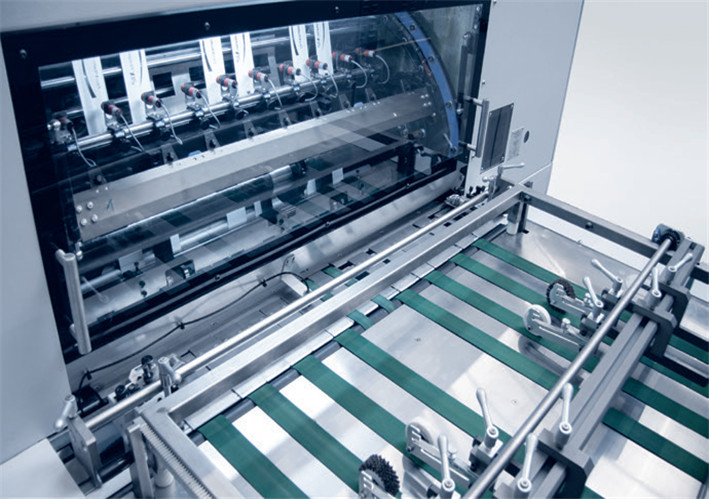

Feeder Table
Register system
Side lay with pull/push function on operator and drive side
Central adjustment of brushes and rollers
Four front lays with active optical monitoring
Ultrasonic doublesheet detector

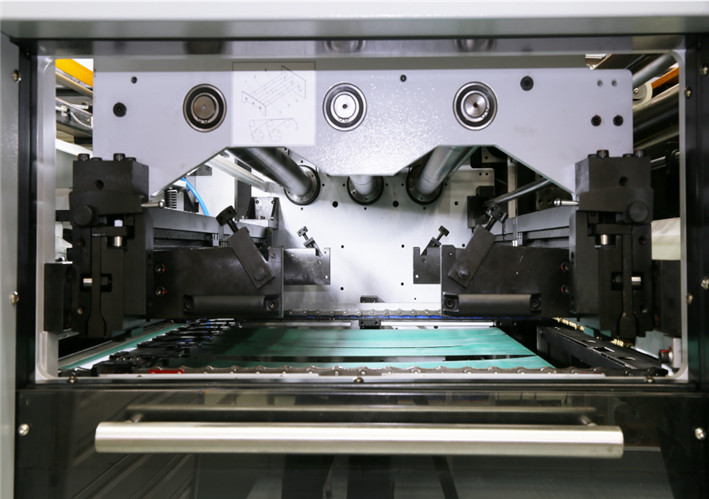

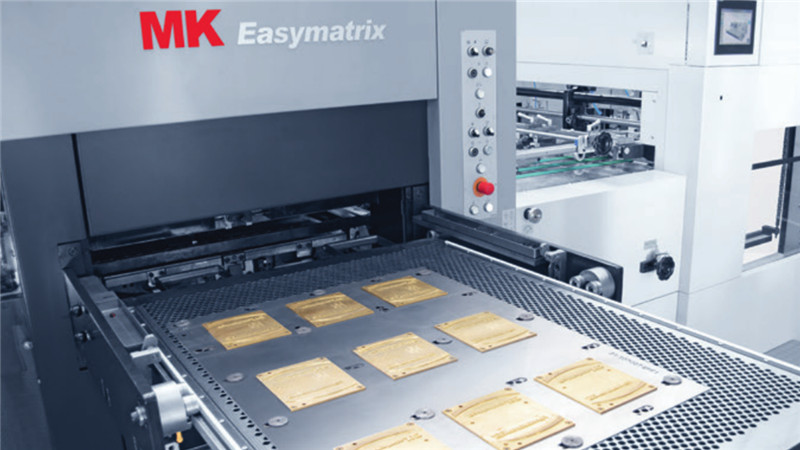

Platen Press
Register system
Motorized diecutting pressure adjustment
Cutting plate fine adjustment
Air cushion for easy cutting plate handling
Chase changer (optional)

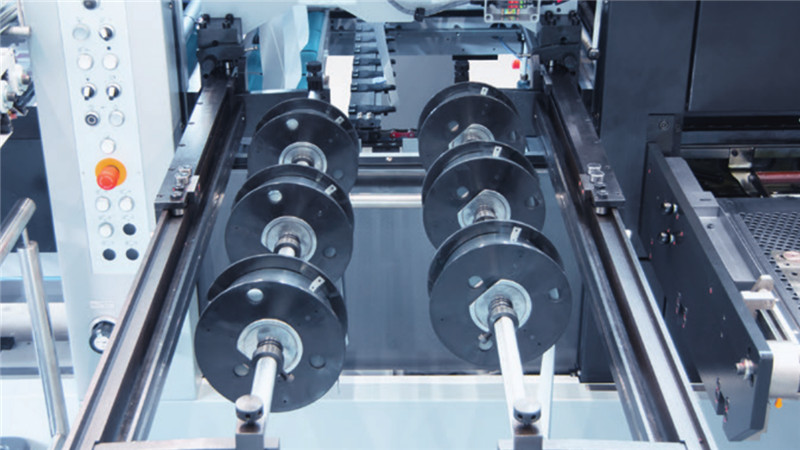

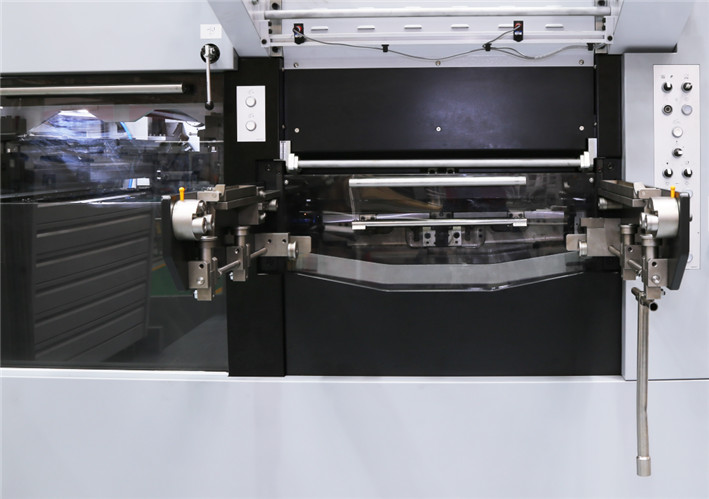

Foil Stamping Station
Three longitudinal foil feeding shafts
Hologram device (optional)
20 heating zones (cutting stational)
Telescopic longitudinal foil feeding bars
Motorized brush system for foil disposal
Rewinder (optional)

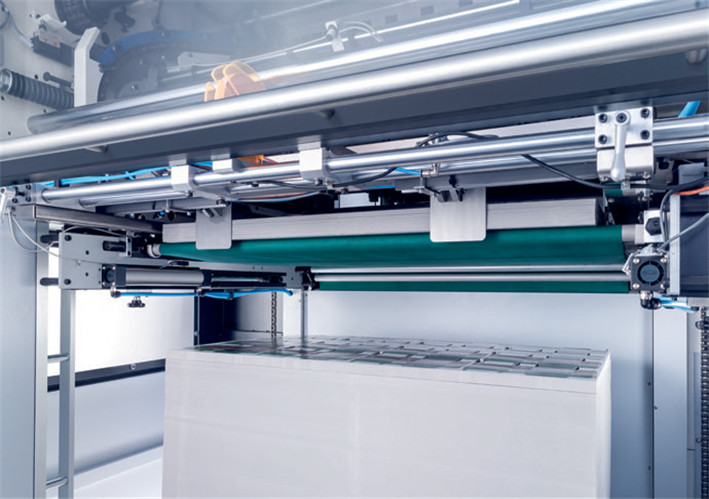

Delivery
Nonstop rolling carpet
Pneumatic flap for test sheet removal
Brake brush with mechanical brake force Adjustment

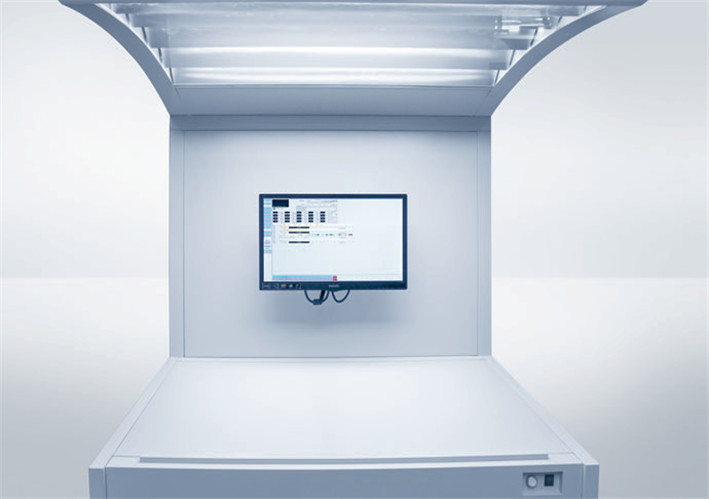

Hot-foil Computer System
Calculation of foil feeding steps
Adjustment of temperature and diecutting pressure
Hologram application control
Job data storage
Simulation of foil feeds
| Processable materials | Easymatrix 106 FC |
| Paper (min.) | 90 g/m2 |
| Solid cardboard (max.) | 2,000 g/m2 |
| Corrugated cardboard (max.) | 4.0 mm (0.16 in) |
| Performance data | |
| Sheet format (max.) | 750 x 1,060 mm (29.53 x 41.73 in) |
| Sheet format (min.) | 360 x 400mm (14.17 x15.75 in) |
| Diecutting pressure (max.) | 2.6 MN/260 t |
| Machine speed (max.) | 7,500 sheets per hour |
| Hot-foil embossing | |
| Hotfoil embossing speed (max.) | 6 ,500 sheets per hour |
| Hologram (option) speed (max.) | 5,500 sheets per hour |
| Temperature max. | 180°C |
| Number of heating zones | 20 |
| Foil reel diameter: | max.250 mm (9.84 in) |
| longitudinal | |
| Transversal max. | 200 mm (7.87 in) |
| Foil width | 20 -1,020 mm(0.79 -40.16 in) |
| Pile heights (incl. pallet) | |
| Feeder pile height (max.): | 1,150 mm (45.27 in) |
| without nonstop | |
| in nonstop operation | 900 mm (35.43 in) |
| Delivery pile height (max.) | 1 ,000 mm (39.37 in) |
For more information, please download the PDF brochure, or click "Contact" to subscribe
Click download
-
What types of cardboard and packaging materials can a cardboard stamping machine process?
A cardboard stamping machine can process various packaging materials, including coated paper, folding cartons, cardboard, and other paper-based substrates. The suitable material range depends on machine configuration, stamping pressure, and production requirements.
-
How does a cardboard stamping machine improve packaging production efficiency?
A cardboard stamping machine improves production efficiency through automated feeding, precise positioning, and stable stamping performance. It helps reduce manual operations, improve production consistency, and meet the needs of high-volume packaging production.
The actual production efficiency depends on factors such as sheet size, stamping area, foil usage, and job complexity.
-
Can a cardboard stamping machine perform both foil stamping and embossing?
Yes. A cardboard stamping machine can be configured for hot foil stamping, embossing, and other finishing processes. It enables packaging manufacturers to create metallic effects and three-dimensional designs for premium packaging applications.
-
What should I consider when choosing a cardboard stamping machine?
Key factors include production capacity, material compatibility, stamping accuracy, automation level, and after-sales support. The right machine should match your packaging types, output requirements, and future production needs.
-
Does Masterwork provide customized solutions for different packaging requirements?
Yes. Masterwork provides suitable machine configurations based on customers’ packaging materials, production requirements, finishing processes, and factory workflow to help achieve stable and efficient production.
