Home Product Die Cutting Machine Promatrix 106CS

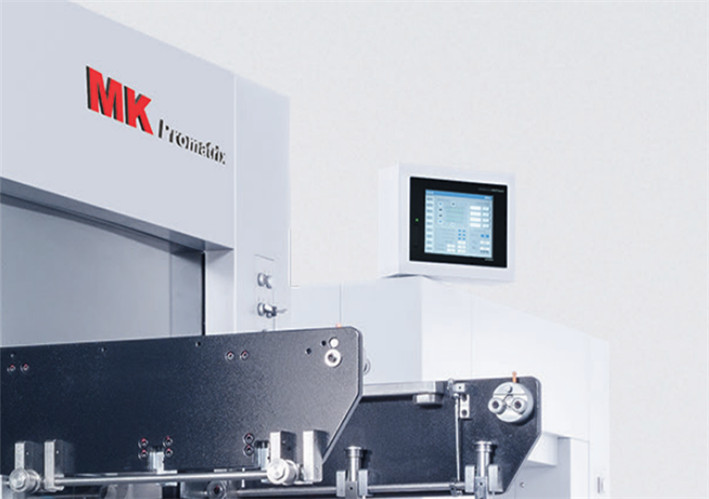

Promatrix 106CS

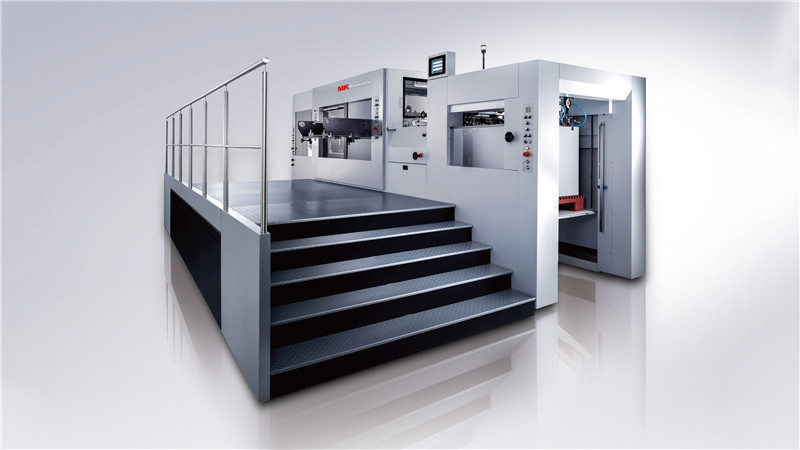

Promatrix 106CS is the new developed rotary gripper opening die-cutter with speed of 8,000s/h. It fits in both paper or cardboard of 90-2000g/m² and corrugated board less than 4mm. Promatrix 106CS can ensure your efficiency and productivity and is the best option for your cutting due to its high precision work.


  • Product Features
  • Technical Parameter
  • PDF Brochure
  • Product Video

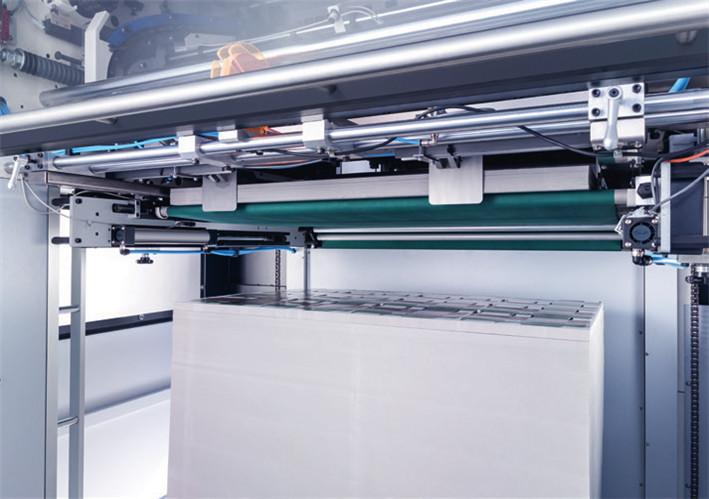

Non-stop Feeder

Non-stop Feeder

.

Suction head for paper, board and corrugated board

.

Suction head with quick positioning function

.

Pile platform with motorized side pile adjustment

.

Mechanical double-sheet detection

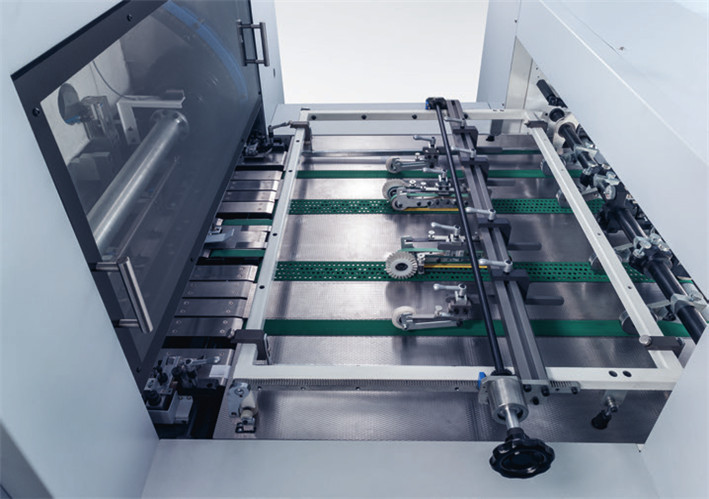

Feed Table

Feed Table

.

Register system

.

Pull/Push side lay on both sides

.

Suction belt table

.

Central adjustment system for rollers and brushes

.

Four front lays with active optical monitoring

.

Gripper opening for misaligned sheets

.

Ultrasonic double-sheet detector

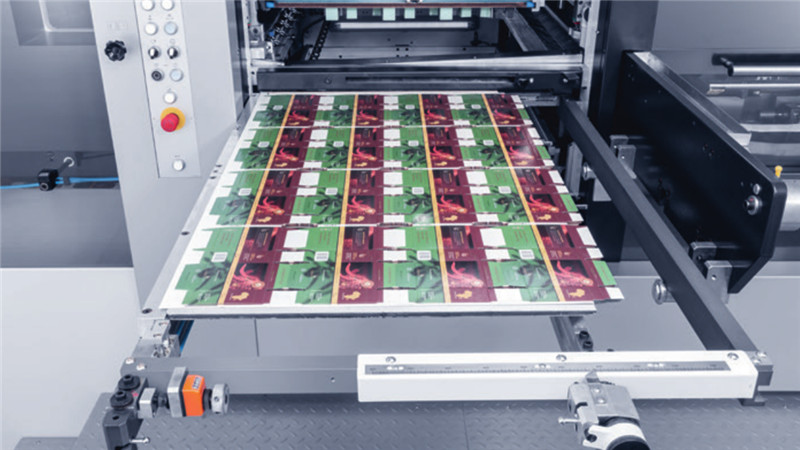

Cutting Station

Cutting Station

.

Register system

.

Motorized cutting pressure adjustment

.

Pneumatic locking device for die-cutting chase and cutting plate

.

Cutting plate fine adjustment

.

Air cushion for easy cutting plate handling

.

Quick lock chase

.

Chase Changer (optional)

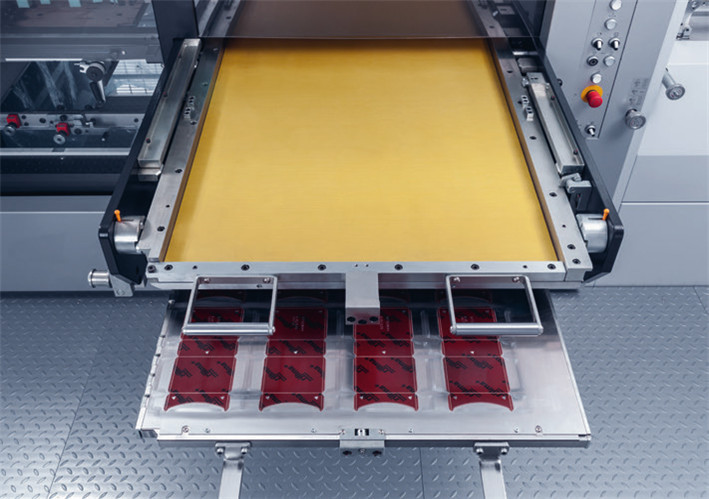

Stripping Station

Stripping Station

.

Register system

.

Integrated quick lock systems for all tools (top, middle, bottom)

.

Fine adjustment of tools with position indicators

.

Test sheet removal

.

Electronic sheet monitoring

.

Pre-make-ready table (optional)

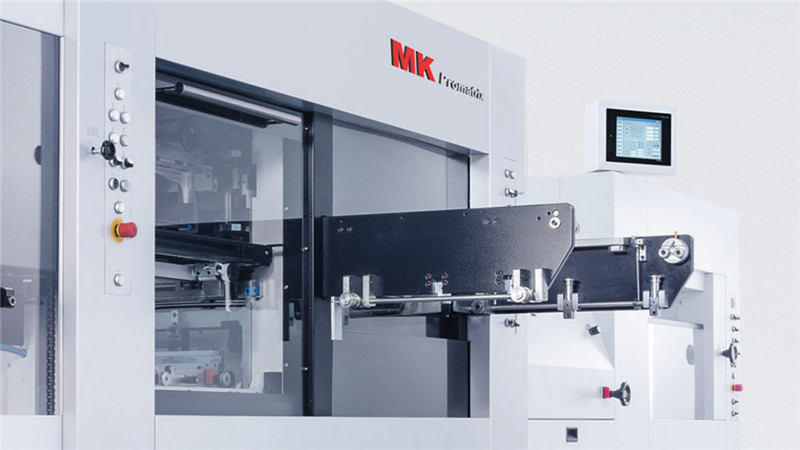

Systems Engineering

Systems Engineering

.

Touch-screen for machine operation

.

Local operation panels

.

CE Conformity

.

GS Certificate

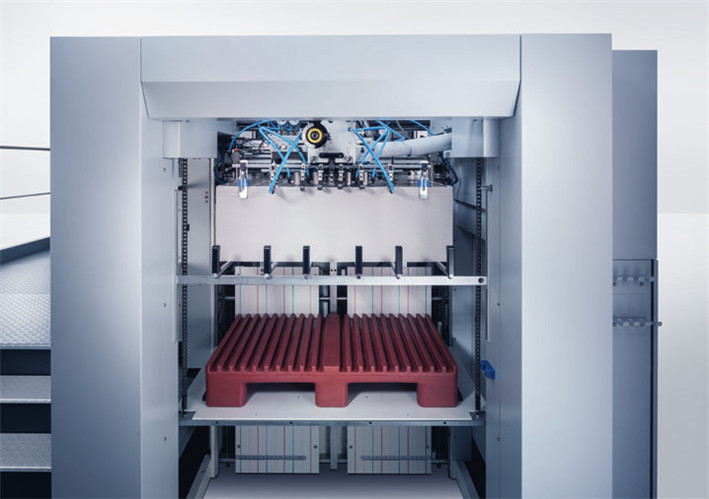

Delivery

Delivery

.

Non-stop rolling carpet

.

Pneumatic flap for test sheet removal

.

Sheet size adjustment with position indicators

.

Sheet brake brush with motorized brake force adjustment

.

Tape inserter (optional)

.

Gripper edge removal system(optional)

Suitable material:
Paper (min.)90g/m2
Carton Board (max.)2,000 g/m2
Corrugated Board (max.)4 mm
Performance data:
Sheet size (max.)760x 1,060 mm
Sheet size (min.)300 X 350 mm
Cutting pressure (max.)2.6 MN / 260 t
Machine speed (max.)8,000 s/h
Pile heights (incl. Pallet):
Feeder pile height (max.)
- w/o non-stop1,500mm
- in non-stop operation1,200mm
Delivery pile height (max.)1,400 mm

For more information, please download the PDF brochure, or click "Contact" to subscribe

Click Download

For more information, please download the PDF brochure, or click "Contact" to subscribe

Question consultation message

We provide complete product solutions, product manuals and more wonderful contents. Please leave your message and information below

Spare Parts and Consumables
  • Suction
  • Tooling
  • Gripper Bar
  • Brush
  • Attachment
  • Belt Arm
  • Rubber
  • Belt
  • Rubber Wheel
  • Nylon Parts
  • Pin
  • Sping
  • Roller
  • Sheet Tidy
  • Tension Spring
Name: Suction
Specification:A0722
Size(mm):outer diameter: 32 Inner diameter: 12 Thickness1
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine

Name: Suction

Specification:A0722
Size(mm):outer diameter: 32 Inner diameter: 12 Thickness1
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine
Name: Suction
Specification:A0723
Size(mm):outer diameter: 38 lnner diameter: 12 Thickness1
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine

Name: Suction

Specification:A0723
Size(mm):outer diameter: 38 lnner diameter: 12 Thickness1
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine
Name: Suction Head
Specification:MK1050-A02-01-02
Size(mm):Thread: M10 Max outer diameter: 23
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine

Name: Suction Head

Specification:MK1050-A02-01-02
Size(mm):Thread: M10 Max outer diameter: 23
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine
Name: Paper Separating Rod
Specification:A0614
Size(mm):Length: 62 Thickness: 0.15 Width14.9 Active hole: 26
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine


Name: Paper Separating Rod

Specification:A0614
Size(mm):Length: 62 Thickness: 0.15 Width14.9 Active hole: 26
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine


Name: Paper Separating Rod
Specification:A0615
Size(mm):Length: 62 Thickness: 0.30 Width14.9 Active hole: 26
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine

Name: Paper Separating Rod

Specification:A0615
Size(mm):Length: 62 Thickness: 0.30 Width14.9 Active hole: 26
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine
Name: Wrench Head of Plate Lock
Specification:T-JBQ-05-02
Size(mm):
Remark:Stamping attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920, MK105O, MK1060 stamping machine and MK1060, MK1050 embossing machine

Name: Wrench Head of Plate Lock

Specification:T-JBQ-05-02
Size(mm):
Remark:Stamping attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920, MK105O, MK1060 stamping machine and MK1060, MK1050 embossing machine

Name: Gripper Tongue
Specification:MK1060MT-B18-10
Size(mm):
Remark:Gripper bar attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine

Name: Gripper Tongue

Specification:MK1060MT-B18-10
Size(mm):
Remark:Gripper bar attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine
Name: Gripeer Gasket
Specification:MK1060MT-B18-09
Size(mm):Length*Width*Thickness 50.5*32*3
Remark:Gripper bar attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK920,MK1050 and MK10 Stamping machine 60 Series Die Cutting or Foil

Name: Gripeer Gasket

Specification:MK1060MT-B18-09
Size(mm):Length*Width*Thickness 50.5*32*3
Remark:Gripper bar attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK920,MK1050 and MK10 Stamping machine 60 Series Die Cutting or Foil
Name: Brush Wheel Units
Specification:A1543S
Size(mm):Max outer diameter: 65 Bearing holelnner diameter 23.9
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920, MK1050 and MK1060 Series Die Cutting or Foil Stamping machine


Name: Brush Wheel Units

Specification:A1543S
Size(mm):Max outer diameter: 65 Bearing holelnner diameter 23.9
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920, MK1050 and MK1060 Series Die Cutting or Foil Stamping machine


Name: Brush Wheel Units
Specification:A1554S
Size(mm):
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting orFoil Stamping machine

Name: Brush Wheel Units

Specification:A1554S
Size(mm):
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting orFoil Stamping machine
Name: Brush Roller
Specification:MK920MT-D24-22
Size(mm):Length: 350 Inner diameter: 25
Remark:Stamping attachment
Suitable type:MK platen press stamping machine
lnstruction:Suitable for MK920, MK1050, MK1060 Stamping machine

Name: Brush Roller

Specification:MK920MT-D24-22
Size(mm):Length: 350 Inner diameter: 25
Remark:Stamping attachment
Suitable type:MK platen press stamping machine
lnstruction:Suitable for MK920, MK1050, MK1060 Stamping machine

Name: Press Brush
Specification:MK1060MT-D12-29
Size(mm):Length: 1080 Brush active length: 58
Remark:Delivery attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:MK1050,MK1060 die cutting or stamping machine

Name: Press Brush

Specification:MK1060MT-D12-29
Size(mm):Length: 1080 Brush active length: 58
Remark:Delivery attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:MK1050,MK1060 die cutting or stamping machine
Name: Brush
Specification:A0609
Size(mm):Length: 36 Width: 22 Thickness: 6
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920, MK1050 and MK1060 Series Die Cutting orFoil Stamping machine

Name: Brush

Specification:A0609
Size(mm):Length: 36 Width: 22 Thickness: 6
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping machine
lnstruction:Suitable for MK920, MK1050 and MK1060 Series Die Cutting orFoil Stamping machine

Name: Foil-putting Turnplate
Specification:MK1050MTI-02-24-00
Size(mm):Max outer diameter: 82 diameter: 25
Remark:Stamping attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK Foil Stamping machine


Name: Foil-putting Turnplate

Specification:MK1050MTI-02-24-00
Size(mm):Max outer diameter: 82 diameter: 25
Remark:Stamping attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK Foil Stamping machine


Name: Foil-putting Baffle Ring
Specification:1050MTIl-02-21-00
Size(mm):Max outer diameter: 190 diameter: 25
Remark:Stamping attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK920, MK1050, MK1060 Stamping machine

Name: Foil-putting Baffle Ring

Specification:1050MTIl-02-21-00
Size(mm):Max outer diameter: 190 diameter: 25
Remark:Stamping attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK920, MK1050, MK1060 Stamping machine
Name: Foil-putting Baffle Ring
Specification:MK1050MTIl-O2-22-00
Size(mm):outer diameter: 190 Inner diameter Max dimension: 84Thickness: 7
Remark:Stamping attachment
Suitable type:MK platen press stamping machine
lnstruction:Should assembly with MK105OMTIl-O2-24-00, Suitable for MK920, MK105O, MK1060 Stamping machine

Name: Foil-putting Baffle Ring

Specification:MK1050MTIl-O2-22-00
Size(mm):outer diameter: 190 Inner diameter Max dimension: 84Thickness: 7
Remark:Stamping attachment
Suitable type:MK platen press stamping machine
lnstruction:Should assembly with MK105OMTIl-O2-24-00, Suitable for MK920, MK105O, MK1060 Stamping machine
Name: I Type Belt Arm
Specification:MK550-LB5
Size(mm):Folder Gluer attachment
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK Folder gluer machine

Name: I Type Belt Arm

Specification:MK550-LB5
Size(mm):Folder Gluer attachment
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK Folder gluer machine

Name: Rubber Cover
Specification:MK1050E-04-38
Size(mm):Total length: 202.5 Max.Inner diameter: 80 Min.Innerdiameter: 50
Remark:Stripping protection
Suitable type:MK platen press die cutting with stripping machine
lnstruction:Suitable for MK1050 and MK1060 Series Die Cutting with Stripping machine

Name: Rubber Cover

Specification:MK1050E-04-38
Size(mm):Total length: 202.5 Max.Inner diameter: 80 Min.Innerdiameter: 50
Remark:Stripping protection
Suitable type:MK platen press die cutting with stripping machine
lnstruction:Suitable for MK1050 and MK1060 Series Die Cutting with Stripping machine
Name: Flat Belt
Specification:8X25X1120
Size(mm):8X25X1120
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FBIl,650FBll Folder Gluer machine

Name: Flat Belt

Specification:8X25X1120
Size(mm):8X25X1120
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FBIl,650FBll Folder Gluer machine
Name: Flat Belt
Specification:8X25X980
Size(mm):8X25X980
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FB,650FB Folder Gluer machine

Name: Flat Belt

Specification:8X25X980
Size(mm):8X25X980
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FB,650FB Folder Gluer machine
Name: Back belt on prefolding section right and left side
Specification:4X18X4550
Size(mm):4X18X4550
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FBII, 650FBII Folder Gluer machine

Name: Back belt on prefolding section right and left side

Specification:4X18X4550
Size(mm):4X18X4550
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FBII, 650FBII Folder Gluer machine
Name: Upper pressing belt in front of Prefolding system
Specification:3X15X1350
Size(mm):3X15X1350
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FBII, 650FBII Folder Gluer machine

Name: Upper pressing belt in front of Prefolding system

Specification:3X15X1350
Size(mm):3X15X1350
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FBII, 650FBII Folder Gluer machine
Name: Upper pressing belt in middle of Prefolding system
Specification:3X15X2610
Size(mm):3X15X2610
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FBII, 650FBII Folder Gluer machine

Name: Upper pressing belt in middle of Prefolding system

Specification:3X15X2610
Size(mm):3X15X2610
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FBII, 650FBII Folder Gluer machine
Name: Upper pressing belt in back of Prefolding system
Specification:3X15X720
Size(mm):3X15X720
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FBII, 650FBII Folder Gluer machine

Name: Upper pressing belt in back of Prefolding system

Specification:3X15X720
Size(mm):3X15X720
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FBII, 650FBII Folder Gluer machine
Name: Feeding table belt
Specification:MK920MT-A24-25
Size(mm):2900*240*1 Length Width Thickness
Remark:Feeder attachment
Suitable type:MK platen press stamping machine
lnstruction:Suitable for MK920 Foil Stamping machine,tension needregluar checking

Name: Feeding table belt

Specification:MK920MT-A24-25
Size(mm):2900*240*1 Length Width Thickness
Remark:Feeder attachment
Suitable type:MK platen press stamping machine
lnstruction:Suitable for MK920 Foil Stamping machine,tension needregluar checking
Name: Feeding table belt(Wide)
Specification:MK1060MT-A32-02
Size(mm):2790*240*1 Length Width Thickness
Remark:Feeder attachment
Suitable type:MK platen press stamping machine
lnstruction:Tension need regular checking, suitable for MK1060MT stamping machine or MK1060ER blanking machine


Name: Feeding table belt(Wide)

Specification:MK1060MT-A32-02
Size(mm):2790*240*1 Length Width Thickness
Remark:Feeder attachment
Suitable type:MK platen press stamping machine
lnstruction:Tension need regular checking, suitable for MK1060MT stamping machine or MK1060ER blanking machine


Name: Feeding table belt(Narrow)
Specification:MK1060MT-A32-30
Size(mm):2520*60*1 Length Width Thickness
Remark:Feeder attachment
Suitable type:MK platen press stamping machine
lnstruction:Tension need regular checking, suitable for MK1060MTstamping machine or MK1060ER blanking machine


Name: Feeding table belt(Narrow)

Specification:MK1060MT-A32-30
Size(mm):2520*60*1 Length Width Thickness
Remark:Feeder attachment
Suitable type:MK platen press stamping machine
lnstruction:Tension need regular checking, suitable for MK1060MTstamping machine or MK1060ER blanking machine


Name: Front belt on prefolding section right and left side
Specification:4X15X1150
Size(mm):4X15X1150
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FB,650FB Folder Gluer machine


Name: Front belt on prefolding section right and left side

Specification:4X15X1150
Size(mm):4X15X1150
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FB,650FB Folder Gluer machine


Name: Back belt on prefolding section right and left side
Specification:4X15X940
Size(mm):4X15X940
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FB,650FB Folder Gluer machine


Name: Back belt on prefolding section right and left side

Specification:4X15X940
Size(mm):4X15X940
Remark:
Suitable type:MK folder gluer
lnstruction:Suitable for MK550FB,650FB Folder Gluer machine


Name: Press roller
Specification:MK1020E-A-25-16A
Size(mm):Max outer diameter60,diameter26.2 Thickness15
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine

Name: Press roller

Specification:MK1020E-A-25-16A
Size(mm):Max outer diameter60,diameter26.2 Thickness15
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting or Foil Stamping machine
Name: Roller
Specification:MK1020E-A-25-50
Size(mm):Max outer diameter66, diameter28 Thickness25
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK920, MK1050 and MK1060 Series Die Cutting or Foil Stamping machine

Name: Roller

Specification:MK1020E-A-25-50
Size(mm):Max outer diameter66, diameter28 Thickness25
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK920, MK1050 and MK1060 Series Die Cutting or Foil Stamping machine

Name: Nylon block
Specification:MK920MT-B09-12
Size(mm):Length*Width*Thickness20*25*8 diameter: 5.5
Remark:Positioning attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK920 Foil Stamping machine


Name: Nylon block

Specification:MK920MT-B09-12
Size(mm):Length*Width*Thickness20*25*8 diameter: 5.5
Remark:Positioning attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK920 Foil Stamping machine


Name: Nylon block
Specification:MK920MT-B22-14
Size(mm):Length*Width*Thickness14*25*8 diameter: 5.5
Remark:Positioning attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK920 Foil Stamping machine


Name: Nylon block

Specification:MK920MT-B22-14
Size(mm):Length*Width*Thickness14*25*8 diameter: 5.5
Remark:Positioning attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK920 Foil Stamping machine


Name: Nylon position block
Specification:MK1050B-27-02-O2A
Size(mm):Length: 28 Width: 25
Remark:Positioning attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050,MK1060MF/YM Cutting or Stampingmachine


Name: Nylon position block

Specification:MK1050B-27-02-O2A
Size(mm):Length: 28 Width: 25
Remark:Positioning attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050,MK1060MF/YM Cutting or Stampingmachine


Name: Nylon position block
Specification:MK1050B-27-02-02
Size(mm):Length: 28 Width: 25
Remark:Positioning attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050,MK106OMF/YM Cutting or Stampingmachine


Name: Nylon position block

Specification:MK1050B-27-02-02
Size(mm):Length: 28 Width: 25
Remark:Positioning attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050,MK106OMF/YM Cutting or Stampingmachine


Name: Nylon position block
Specification:MK1050B-46-07-02A
Size(mm):Length: 26 Width: 25
Remark:Positioning attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050, MK1060MF/YM Cutting or Stampingmachine


Name: Nylon position block

Specification:MK1050B-46-07-02A
Size(mm):Length: 26 Width: 25
Remark:Positioning attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050, MK1060MF/YM Cutting or Stampingmachine


Name: Nylon position block
Specification:MK1050B-46-07-02
Size(mm):Length: 26 Width: 25
Remark:Positioning attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050, MK106OMF/YM Cutting or Stampingmachine


Name: Nylon position block

Specification:MK1050B-46-07-02
Size(mm):Length: 26 Width: 25
Remark:Positioning attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050, MK106OMF/YM Cutting or Stampingmachine


Name: Position Block (OS)
Specification:MK920MT-B24-15
Size(mm):Length*Width*Thickness 80*30*19.5
Remark:Positioning attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK920 Foil Stamping machine


Name: Position Block (OS)

Specification:MK920MT-B24-15
Size(mm):Length*Width*Thickness 80*30*19.5
Remark:Positioning attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK920 Foil Stamping machine


Name: Position Block DS
Specification:MK920MT-B24-18
Size(mm):Length*Width*Thickness 80*50*19.5
Remark:Positioning attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK920 Foil Stamping machine


Name: Position Block DS

Specification:MK920MT-B24-18
Size(mm):Length*Width*Thickness 80*50*19.5
Remark:Positioning attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK920 Foil Stamping machine


Name: Slide plate
Specification:MK1050B-71-06
Size(mm):Total length:213 Height:46
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK Platen Press machine


Name: Slide plate

Specification:MK1050B-71-06
Size(mm):Total length:213 Height:46
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK Platen Press machine


Name: Located Pin
Specification:MK1060MT-B18-04
Size(mm):Length: 81 Thread: M8*1
Remark:Gripper bar attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting orFoil Stamping machine


Name: Located Pin

Specification:MK1060MT-B18-04
Size(mm):Length: 81 Thread: M8*1
Remark:Gripper bar attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK920,MK1050 and MK1060 Series Die Cutting orFoil Stamping machine


Name: Connect rod
Specification:MK1060E-B118A-07A
Size(mm):Length: 42 diameter: 7.94
Remark:Gripper bar attachment
Suitable type:MK platen press die cutting machine
lnstruction:Suitable for MK106OE, MK1060ERSL Stripping or Blanking machine


Name: Connect rod

Specification:MK1060E-B118A-07A
Size(mm):Length: 42 diameter: 7.94
Remark:Gripper bar attachment
Suitable type:MK platen press die cutting machine
lnstruction:Suitable for MK106OE, MK1060ERSL Stripping or Blanking machine


Name: Connect rod
Specification:MK1060E-B118A-03A
Size(mm):Length: 56.5 diameter: 7.94
Remark:Gripper bar attachment
Suitable type:MK platen press die cutting machine
lnstruction:Suitable for MK106OE,MK1060ERSL Stripping or Blankingmachine


Name: Connect rod

Specification:MK1060E-B118A-03A
Size(mm):Length: 56.5 diameter: 7.94
Remark:Gripper bar attachment
Suitable type:MK platen press die cutting machine
lnstruction:Suitable for MK106OE,MK1060ERSL Stripping or Blankingmachine


Name: Compression spring
Specification:MK105OMTIl-02-23-00
Size(mm):Length: 36.3 diameter: 30
Remark:Feeder attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK Foil Stamping machine


Name: Compression spring

Specification:MK105OMTIl-02-23-00
Size(mm):Length: 36.3 diameter: 30
Remark:Feeder attachment
Suitable type:MK stamping machine
lnstruction:Suitable for MK Foil Stamping machine


Name: Guide Wheel
Specification:A1332
Size(mm):Max outer diameter: 34 Min.Inner diameter: 23
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050, MK1060MF/YM Cutting or Stampingmachine


Name: Guide Wheel

Specification:A1332
Size(mm):Max outer diameter: 34 Min.Inner diameter: 23
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050, MK1060MF/YM Cutting or Stampingmachine


Name: Sheet tidy block
Specification:A1647
Size(mm):lnner diameter: 12 total length: 46
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK105O, MK106OMF/YM Cutting or Stampingmachine


Name: Sheet tidy block

Specification:A1647
Size(mm):lnner diameter: 12 total length: 46
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK105O, MK106OMF/YM Cutting or Stampingmachine


Name: Tension Spring
Specification:A1622
Size(mm):total length: 71 Tension spring active length: 21.54
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050, MK1060MF/YM Cutting or Stamping machine


Name: Tension Spring

Specification:A1622
Size(mm):total length: 71 Tension spring active length: 21.54
Remark:Feeder attachment
Suitable type:MK platen press diecutting or stamping
lnstruction:Suitable for MK1050, MK1060MF/YM Cutting or Stamping machine


How can we help you?

We look forward to hearing from you. In order to respond to your message more quickly, we need some information. *These are required
