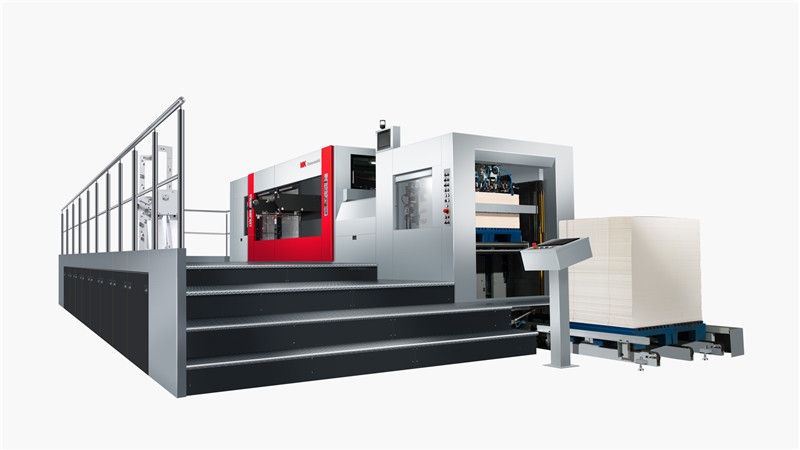

Powermatrix 106CSB

Powermatrix 106CSB is first new full-function blanking machine developed after the strategy cooperation between MK and HDM. More efficient solution is available for your plant based on the operation speed of 8,000s/h.


  • Product Features
  • Technical Parameter
  • PDF Brochure
  • Product Video

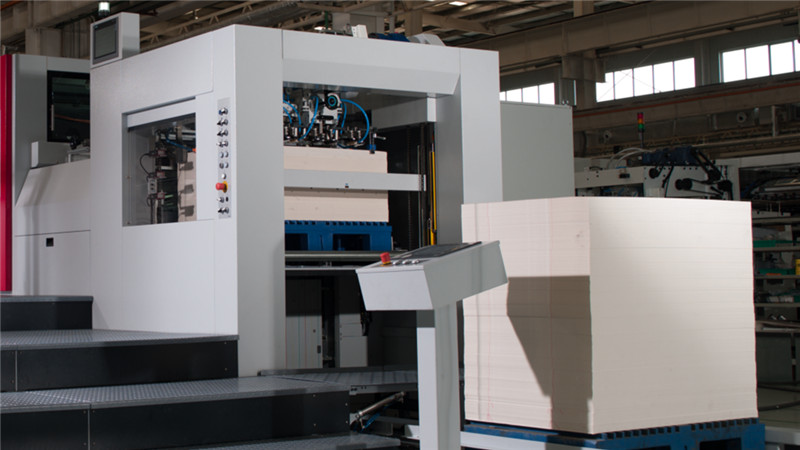

Non-stop Feeder

Non-stop Feeder

.

Standard: manual non-stop

.

Optional: auto-non-stop

.

Feeder logistic (option)

.

Suction head with quick positioning function

.

Automatic lateral pile regulation

.

Mechanical double sheet detection

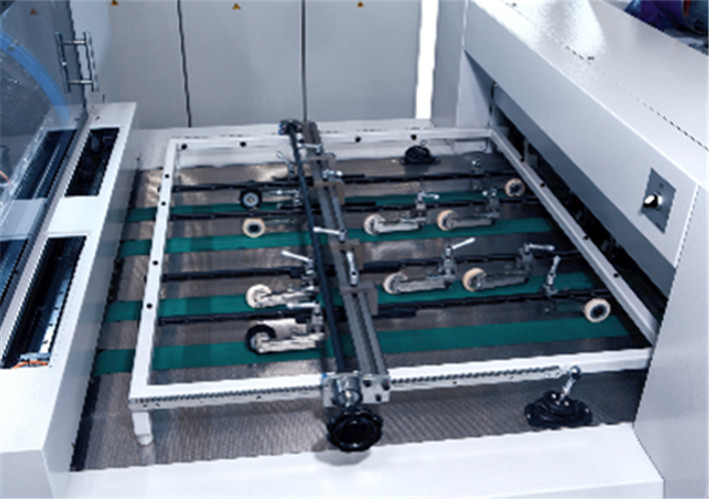

Feed Table

Feed Table

.

MasterSet (option) – optical sheet aligning system

.

Suction belt table

.

Central adjustment of rollers and brushes

.

Sheet slow down device

.

Register system

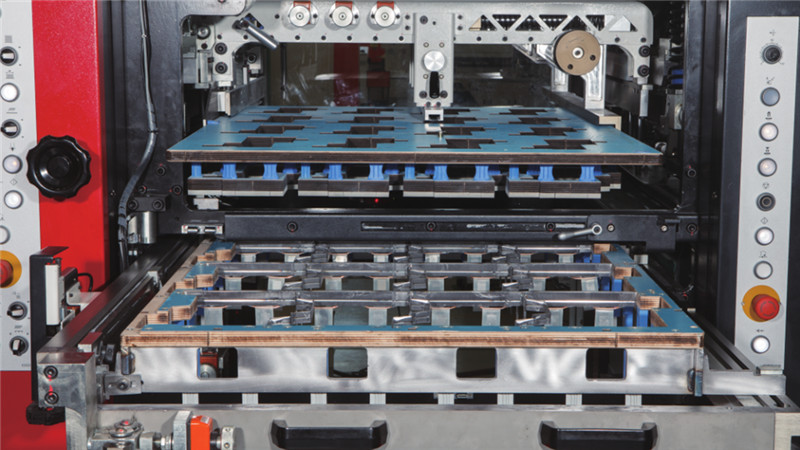

Cutting Station

Cutting Station

.

Register system

.

Motorized cutting pressure adjustment

.

Pneumatic locking device for die-cutting chase and cutting plate

.

Cutting plate fine adjustment

.

Air cushion for easy cutting plate handling

.

Quick lock chase

.

Chase Changer (optional)

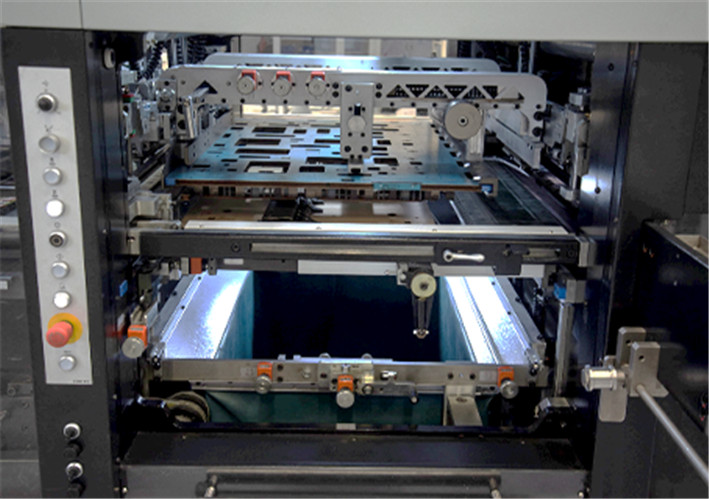

Stripping Station

Stripping Station

.

Register system

.

Integrated quick lock systems for all tools (top, middle, bottom)

.

Fine adjustment of tools with position indicators

.

Test sheet removal

.

Pre-make-ready table (optional)

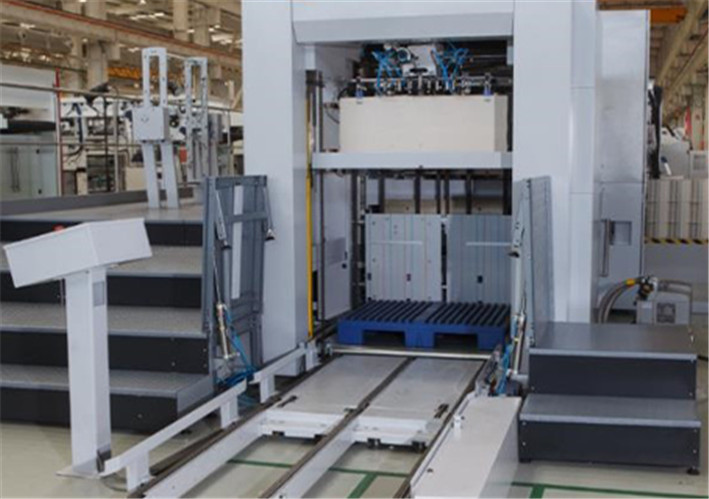

Blanking Station

Blanking Station

.

Integrated quick lock systems for all tools

.

Fine adjustment of tools with position indicators

.

Non-stop operation

.

Automatic pallet change system

.

Tie sheet inserter

.

Vacuum bar

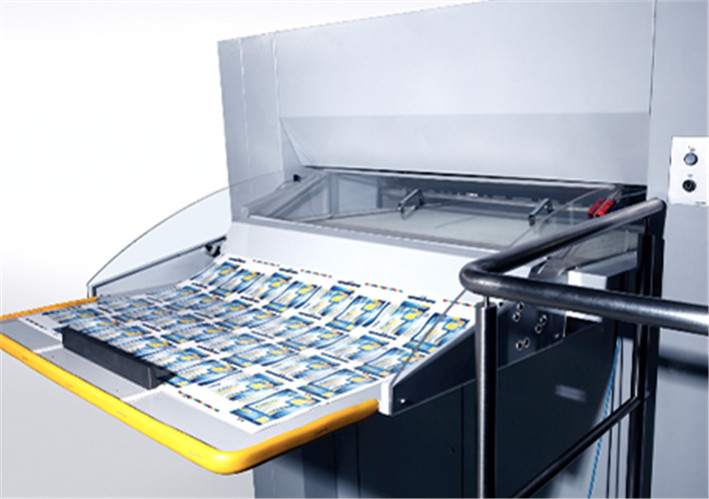

Test Sheet Removal

Test Sheet Removal

.

Quality control during production

.

No need to stop the production process

.

Sheet will be cut and stripped and then provided via the waste belt conveyor

Suitable material:
Paper (min.)90g/m2
Carton Board (max.)2,000 g/m2
Corrugated Board (max.)4 mm
Performance data:
Sheet size (max.)760x 1,060 mm
Sheet size (min.)350 X 400 mm
Cutting pressure (max.)2.6 MN / 260t
Machine speed (max.,)8,000 s/h
Pile heights (incl. Pallet):
Feeder pile height (max.)
- w/o non-stop1,500 mm
- in non-stop operation1,200mm
Delivery pile height (max.)1,200 mm


For more information, please download the PDF brochure, or click "Contact" to subscribe

Click Download

For more information, please download the PDF brochure, or click "Contact" to subscribe
