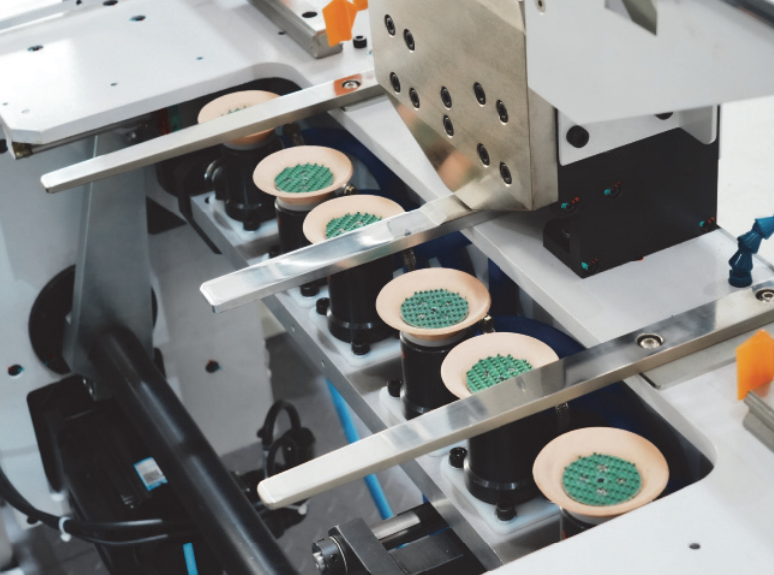

Feeding (optional)
Bottom suction feeder, effectively avoid the printing surface with scratches.
Bottom feeding drive with high speed and stability.

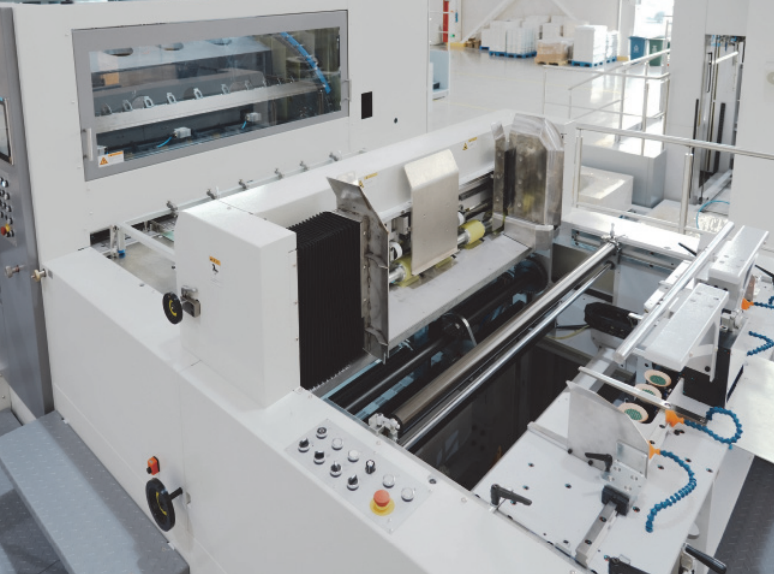

Feeding unit
Bottom suction feeder, effectively avoids sheet scratches.
Blowing/suction Becker pump, more energy saving.
New suction nozzle feeding transmission, high-speed,more stable.

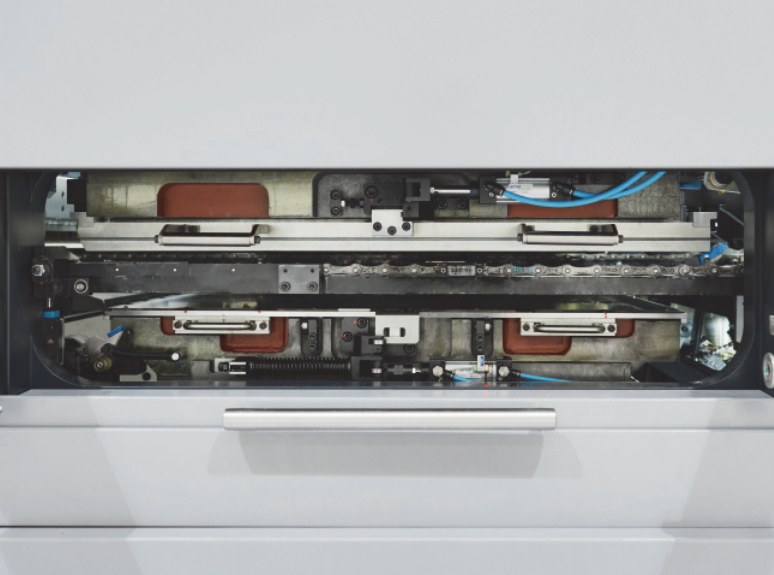

Die-cutting unit
Pressure adjustment: max. die-cutting pressure 400T.
Empty running and missing sheet detection system.
Pneumatic locking on cutting chase and base plate,easy to operate.
Center positioning of the die-cutting plate
The base plate is equipped with air cushion lifting up device topush and pull more smoothly.

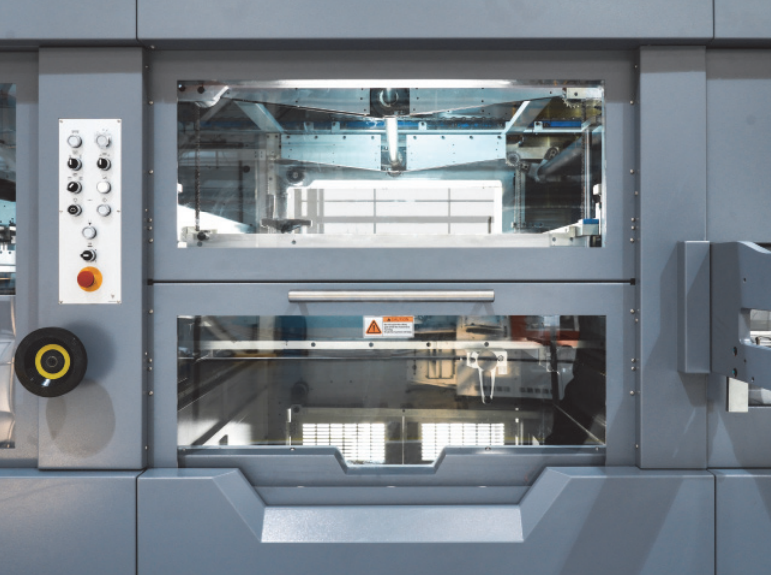

Stripping unit
The upper stripping frame lifted electrically for easy operation.
The upper and middle stripping frames are centered positioning, making the plate change quickly.

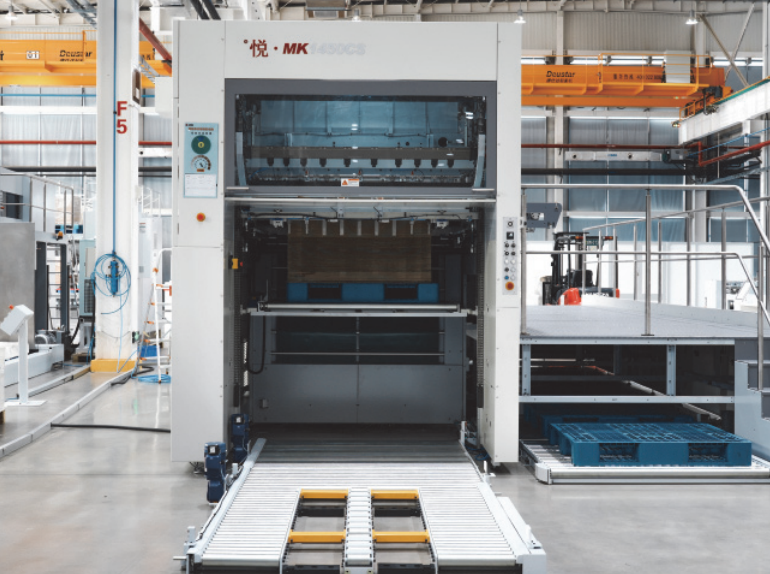

Delivery unit
Standard configuration of gripper edge removal device and waste edge delivery device
Paper alignment device for front/back/side of the delivery stack
Electric auxiliary delivery device can realize non stop delivery.
Two modes of delivery: high pile delivery (automatic logistic as an option) and counting stack delivery.

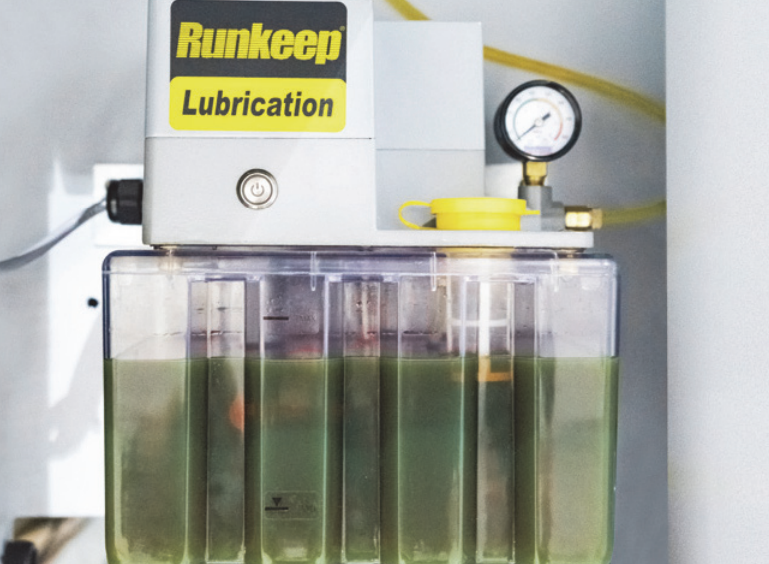

Lubrication systemc
The main moving parts of the machine are lubricated by a centralized automatic lubrication system, which effectively reduces the maintenance time and prolongs the device's service life.

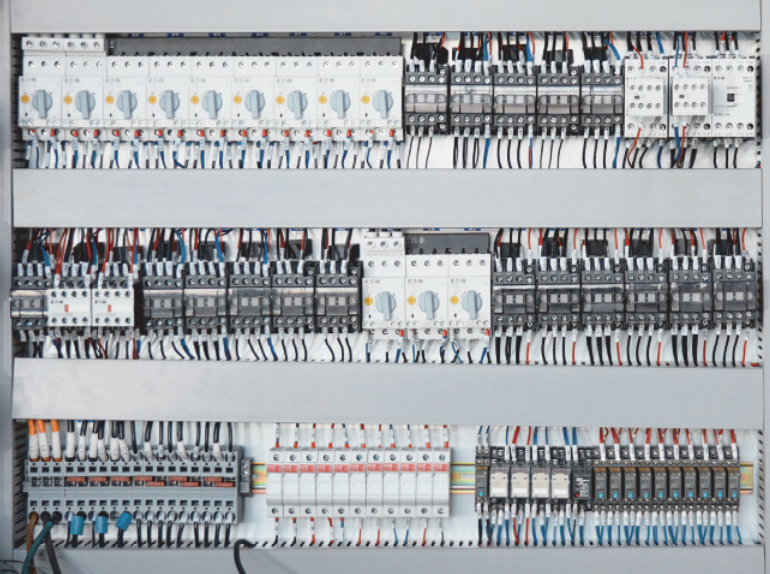

Control system
The electrical control components are modular in design to facilitate maintenance.
The electrical control design of the machine meets national safety standards. In addition, it is optimized for logic control and has a remote maintenance interface.
Max. sheet size | 1450mmx1060mm |
Min. sheet size | 650mmx450mm |
Max.die cutting size | 1440mmx1040mm |
Sheet specification | 1-8.5mm(E,B,C,AandAB corrugated board) |
Gripper margin | 12-18mm(when the first cutting line is standard 20mm) |
Max.pressure | 4.0MN |
Max .speed | 6000s/h |
Max.feeder pile height | 250mm(lower suction feeding) |
Max.delivery pile height | 1600mm (incl.pallet) (high stacking delivery) |
180mm(Counting stacking belt) |
