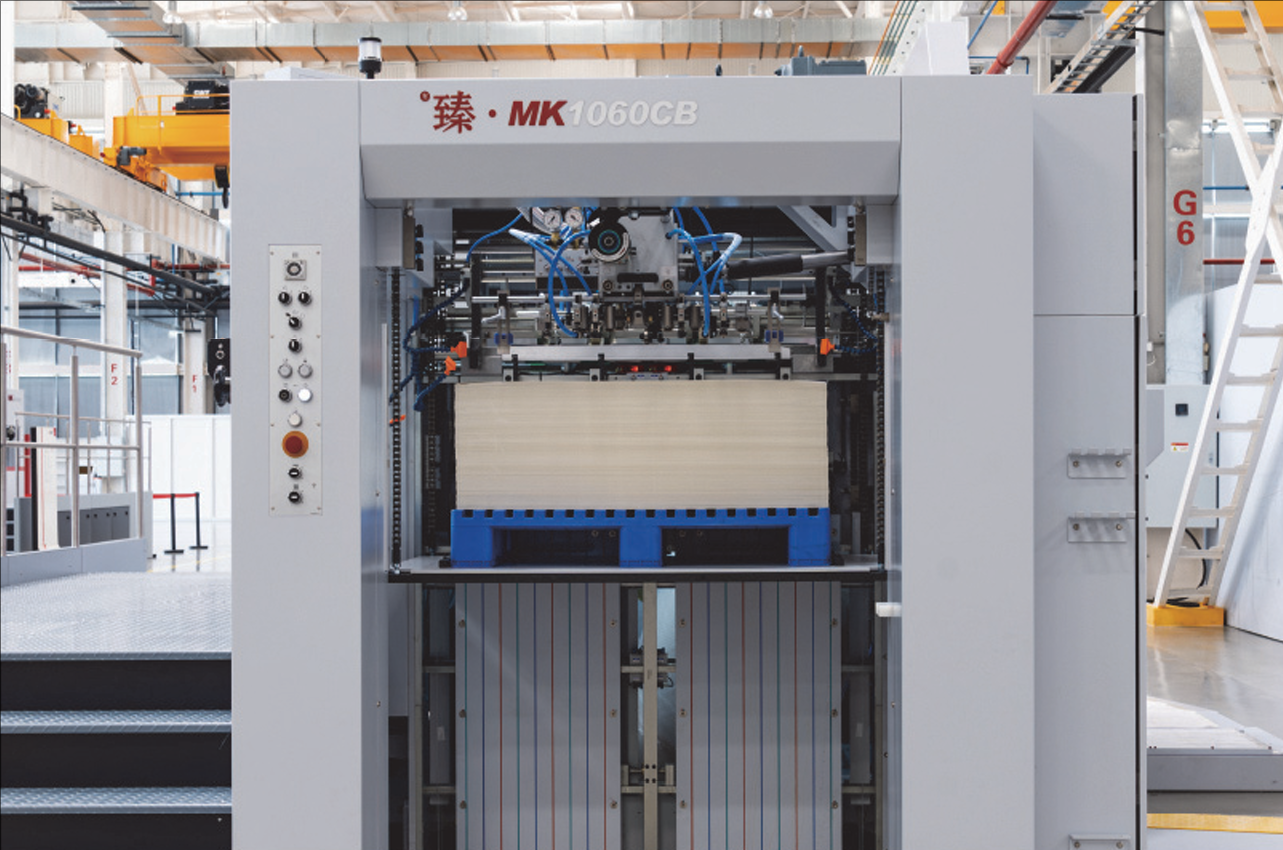

Feeder Station
Strong suction feeder head
Quick positioning and fine-tuning feeder head
Motorized lateral adjustment for feeding pile and side blower

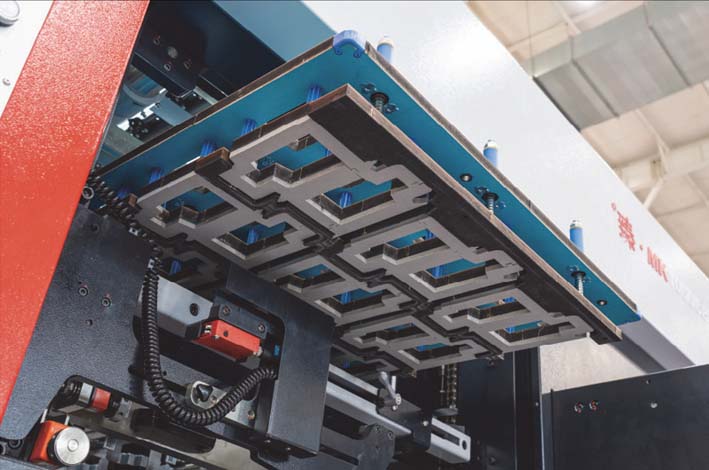

Blanking Station
Quick-lock blanking tools
Digital display fine-tuning device
Center positioning system for blanking tools
Pneumatic lifting of upper blanking frame
Automatic paper interleaving and counting system

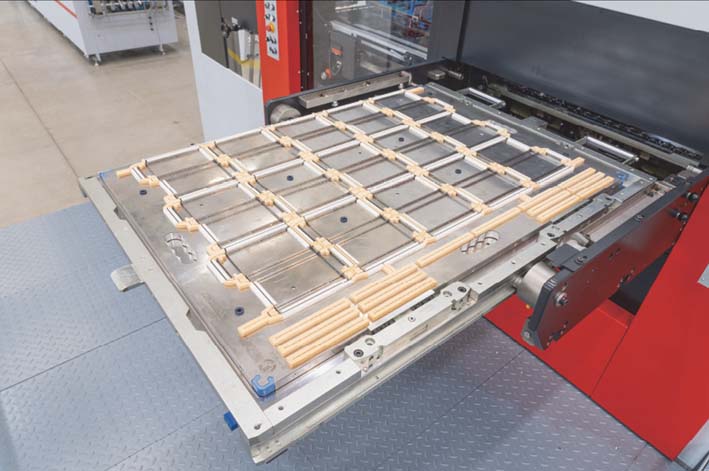

Die-Cutting Station
Forcing gripper opening and clipping if paper is not in place
Modular base plate with pneumatic lifting design
Quick-lock chase with center positioning
Bidirectional pneumatic locking system for die cutting plate
Patented gripper bar with optimized drive curve

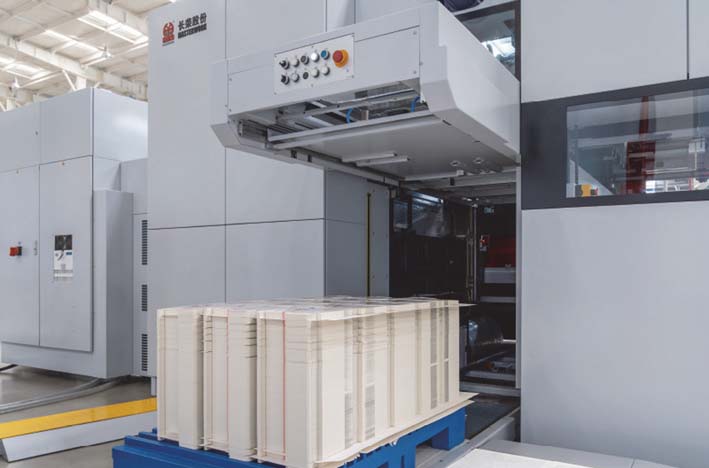

Delivery & Paper Interleaving
Non-stop counting delivery
New paper interleaving mechanism

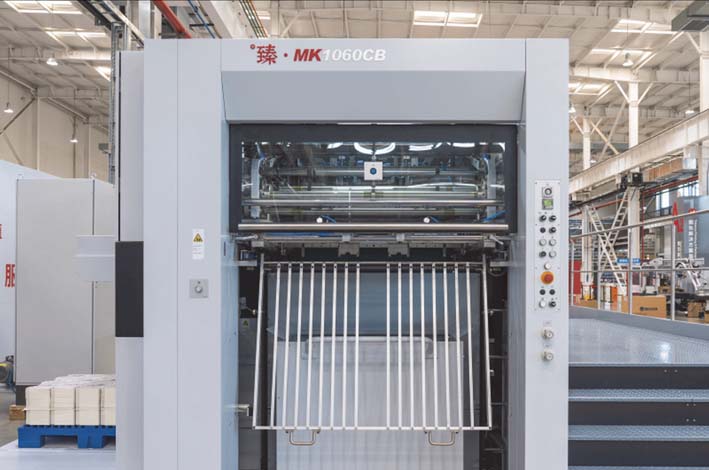

Delivery Station
Non-stop delivery
Damping paper pressing brush
Sampling inspection function

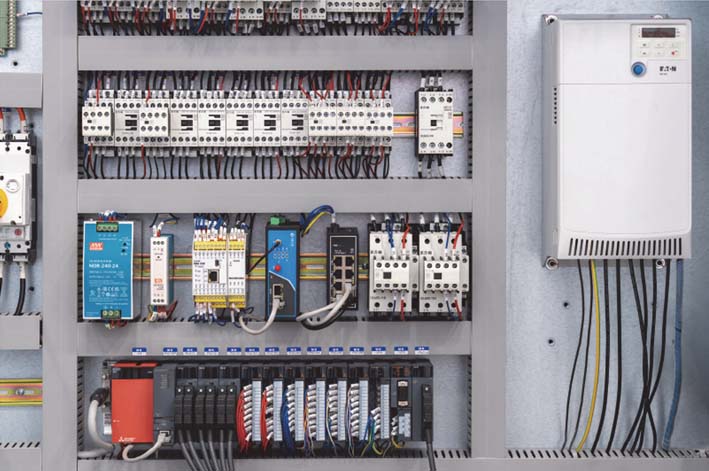

Electrical System
10" color HMI
Eaton buttons, ergonomic panel layout
High quality electrical elements
Dual-circuit safety control
Efficient and reliable PLC controller
Eaton frequency converters for safe operation
| Parameter | MK Procut 106CB |
| Max. sheet size | 1060mmx720mm |
| Min. sheet size | 350mmx300mm |
| Max. die cutting size | 1060mmx705mm |
| Gripper margin | 9～17mm |
| Chase size | 1096mmx770mm |
| Paper range | 90～2000g/m² (cardboard) |
| 0.1-2mm (cardboard) | |
| ≤4 mm (corrugated board) | |
| ≤ 2mm (corrugated, flatness ≤ 20mm/m²) | |
| Die-cutting accuracy | ≤±0.075mm |
| Max. pressure | 2.6MN |
| Max. speed | 8000 sheets/hour |
| Max. feeding pile height | 1500mm (including pallet) |
| Max. delivery pile height | 1400mm (delivery, including pallets) |
| 1100mm (blanking, including pallets) | |
| Machine dimensions | 7400mm (L) × 6000mm (W, including operation platform) × 2660mm (H) |
| Machine weight | Approx. 20000kg |
| Power | Rated power: 13kW / Full load: 25kW |
| Air supply | Pressure: 0.6–0.7MPa / Flow rate > 0.8m³/min |
For more information, please download the PDF brochure, or click "Contact" to subscribe
Click download
-
Maximum Speed and Primary Application
It inherits the stability and efficiency of Pro series die cutters, with a maximum speed of 8000sheets/hour, ideal for die-cutting and blanking of folding cartons using double-knife layouts without stripping.
-
Die-cutting equipment applications
It retains the traditional delivery unit, quick switching between blanking and full-sheet delivery.Die cutting tools can be interchanged with toolings of Procut 106CSB.Procut 106CB is not only suitable for pharma packaging production but also suitable for multiple double-knife designed packaging production, such as paper cups, instant noodle bowls, enabling quick job changeover to greatly enhance your competitiveness.
