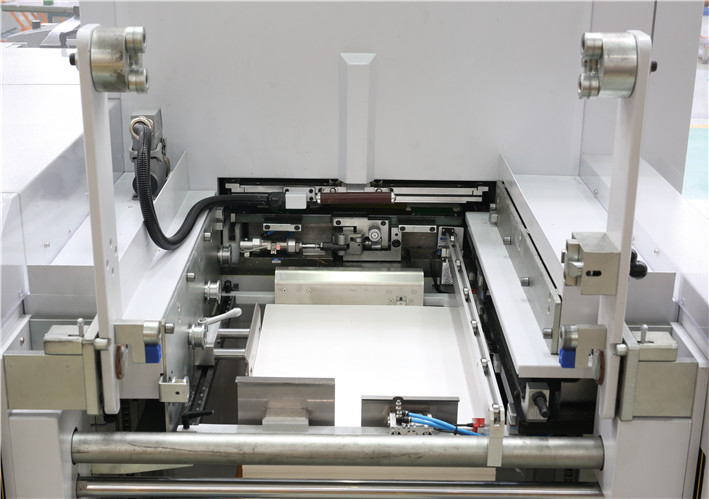

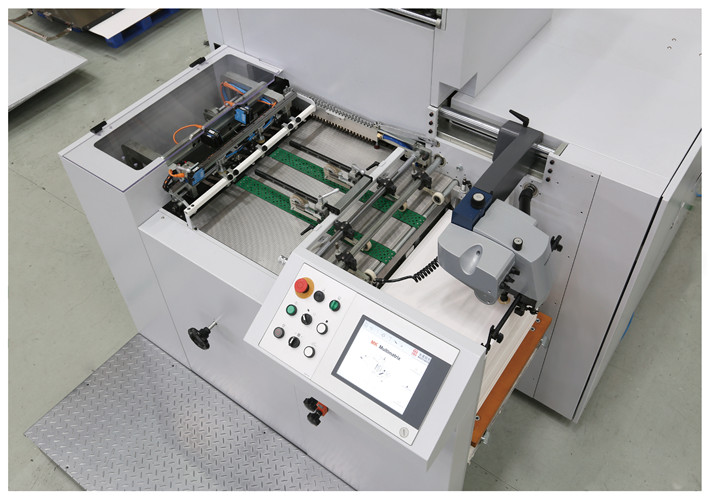

Feeding Station
- Feeder drive by servo motor
- Paper feeding automatic lifting device
- Stream type feeding device
- Manually adjust the vertical position of the feeder head
- Manually adjust the horizontal position of the feeder head
- 3 anti-collision devices
- Manual lateral side blowing device and side baffle
- Vacuum feeding table
- Manual lifting device for paper feeding frame
- Ultrasonic double- sheet detector
- Imported feeding belt
- MasterSet
Main Machine Station
- Main machine power and gripper bar are controlled by servo motor
- Pressure adjusting is auto controlled by servo motor
- Adjustable cutting plate equipped with 2+2mm steel plate
- MC and electronic cam controlled the die cutting timing sequence
- Die cutting chase overturn device
- Bi-directional pneumatic lock device of die cutting chase
- Adjustable cutting plate with pneumatic locking device
- Quick change honeycomb plate
- Quick lock die cutting chase

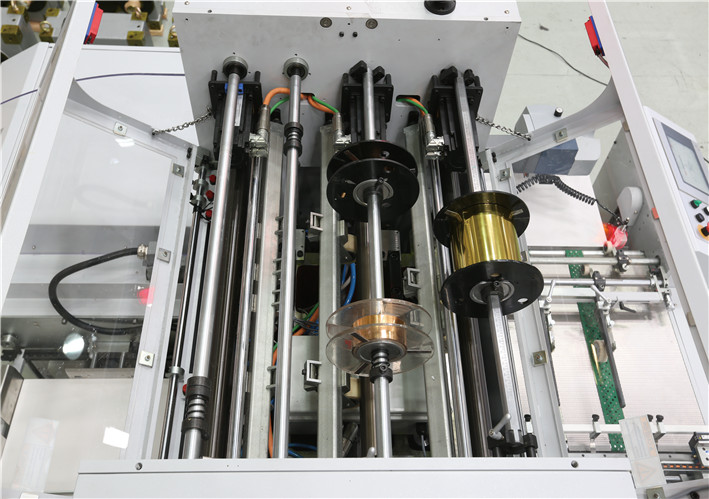

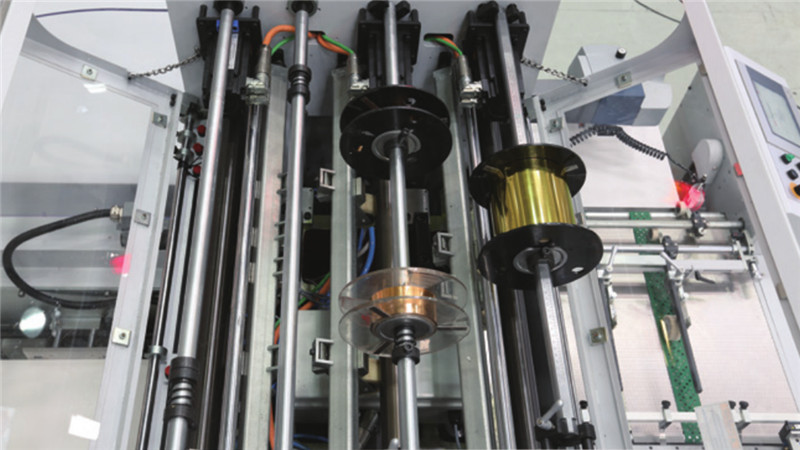

Foil Stamping Station
- Two foil shafts with winding/unwinding foil system controlled by servo motor. The max.
- Blowing separation device
- Foil detection system
- Motorized adjusting for the foil collection damp
- Pneumatic foil pressing rubber roller lifting

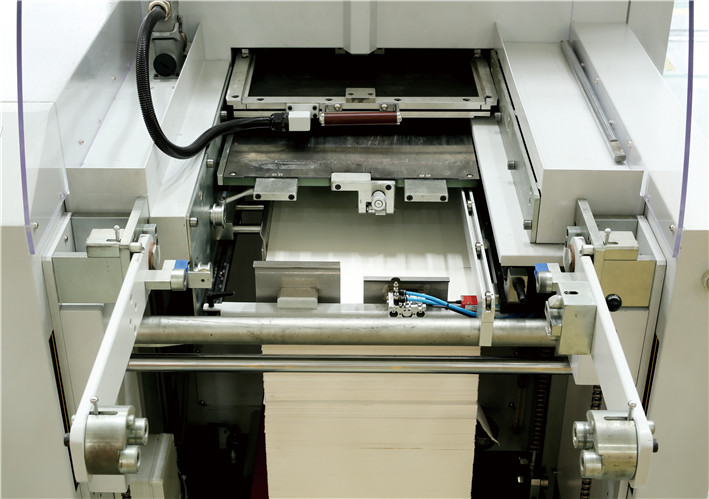

Delivery Station
- Bi-directional pneumatic sheet aligning device
- Delivery auto down device
- Counting paper-inserting system (optional)
Electrical Monitoring System

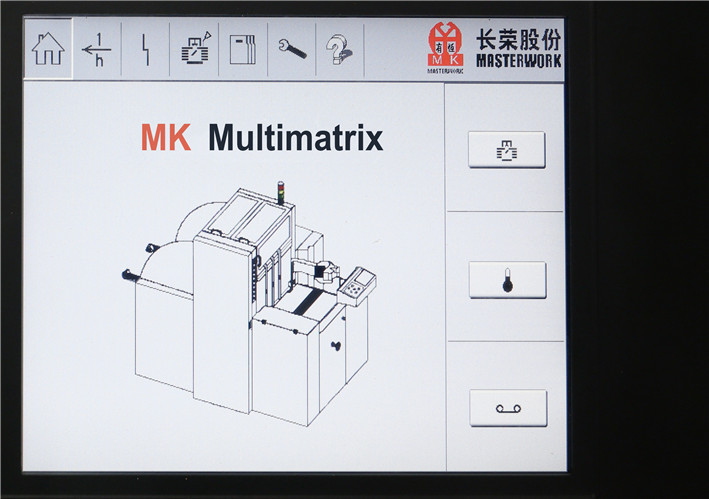

- Imported true-color HMI 10.4'
- Operation panel
- MC drives, etc. are all well-known European brands
- GS standard, and adds safety module control and safety circuit detection.
- Double circuit multi-touch redundancy design
- Temperature control with redundancy protection function. This prevents the temperature from rising too high.

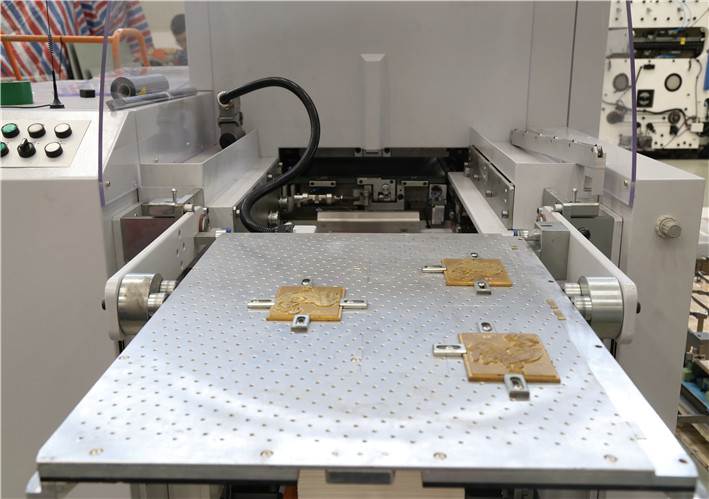

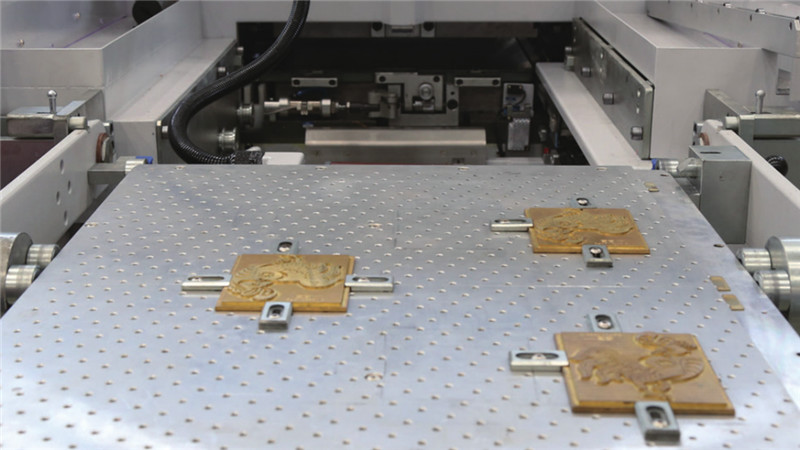

Quick Change Honeycomb Plate
- The quick change honeycomb plate directly inserts the heating tube into the honeycomb plate, so it has the advantages of short heating time (15-20 minutes) and low energy loss.
- There is a thermal insulation layer above the heating pipe. After a long time of foil stamping, the upper platform is still at normal temperature, and the die-cutting chase can be directly replaced for die-cutting work, and the change is only ±0.03mm under normal-temperature die-cutting pressure. This makes the conversion fast and does not have to wait.
- 4 temperature zones, 40~180℃ adjustable

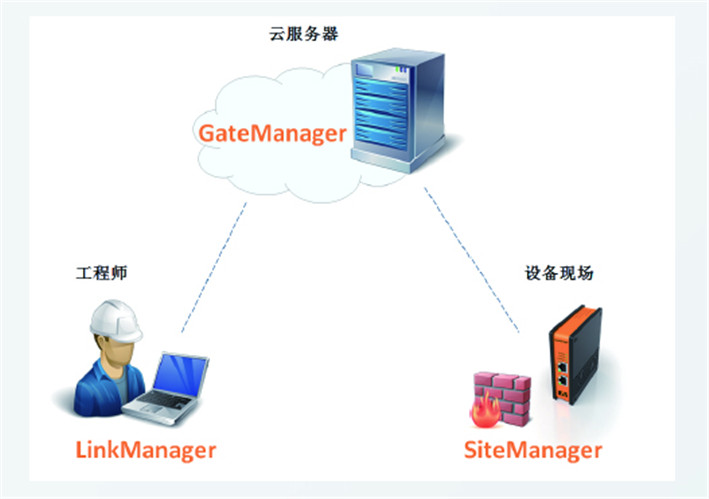

Remote Monitoring System
- Remote connection channels are Web-based SSL/STL security protocols. This remote maintenance solution guarantees the security of user data and high firewall accessibility, which is both safe and convenient.
- It can monitor field devices, promptly remind customers to repair or maintain equipment.
- When the mechanical equipment is abnormal, remote monitoring system can be quickly detected and remotely debugged to reduce troubleshooting time.
| Technical Data | Multimatrix60C |
| Max. sheet size: | 600mmx 450mm |
| Min. sheet size: | 250mmx 175mm |
| Max. die cutting size: | 590mm x 430mm |
| Gripper margin: | 9~ 17mm |
| Inner chase size: | 610mmx 452mm |
| Suitable material: | 120~ 600g/m2 (cardboard) |
| 0.15~0.8mm (cardboard) | |
| Die cutting accuracy: | ≤+0.10mm (die cutting and regular foil stamping)* |
| Max. working pressure: | 80T |
| Max. working speed: | 5500s/h (die cutting and regular foil stamping)* |
| Max. feeder pile height: | 850mm (incl. pallet) |
| Max. delivery pile height: | 850mm (incl. pallet) |
| Dimension: | 3100mm (L)X 1980mm (W)X 2300mm (H) |
| Weight: | ≈5300kg |
| Full-load power: | 26.3KW |
| Air source requirement: | Pressure 0.6 ~0.7Mpa, Flow rate> 1 m3/min |

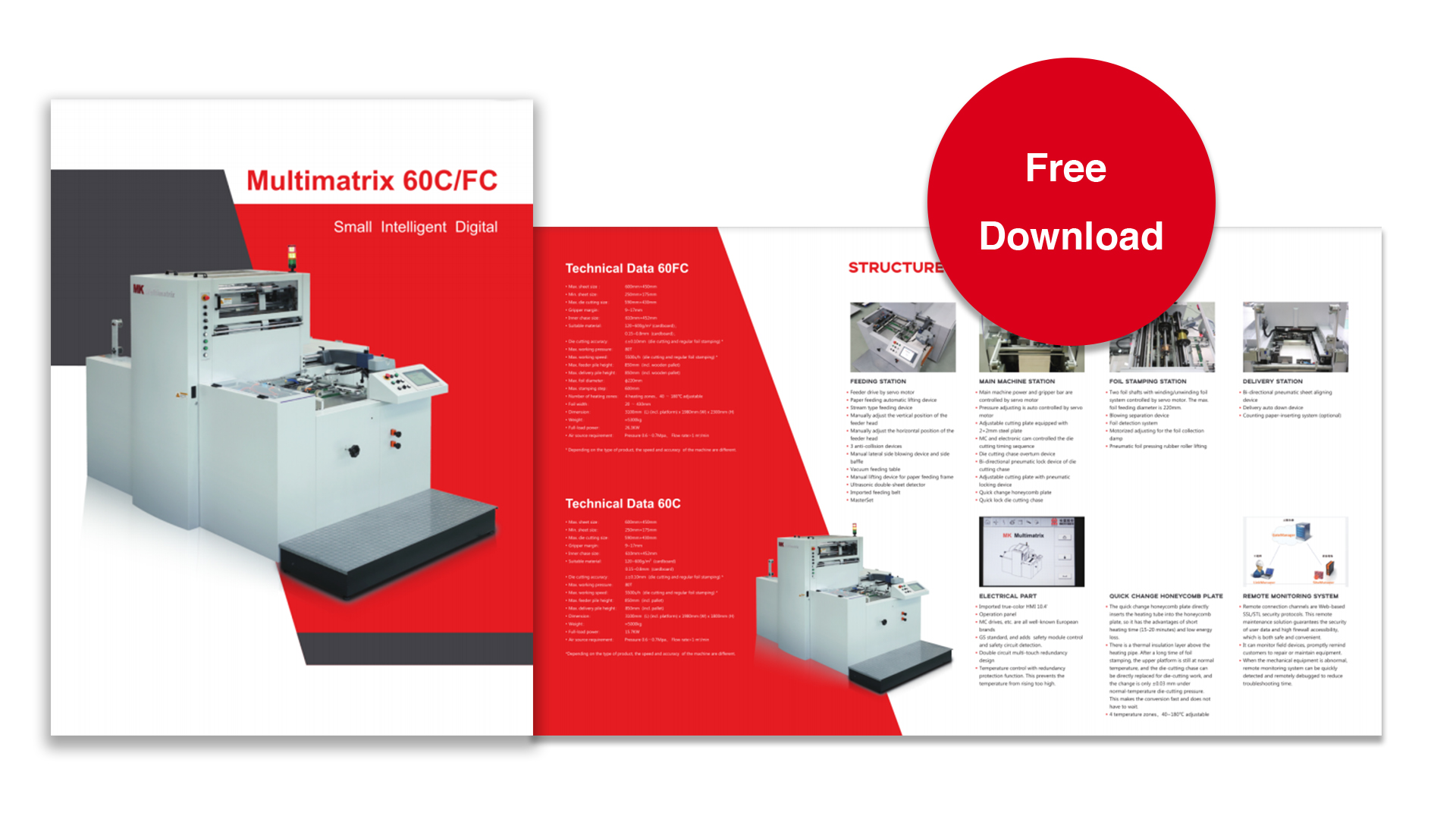

For more information, please download the PDF brochure, or click "Contact" to subscribe
Click download
small die cutting machines australia

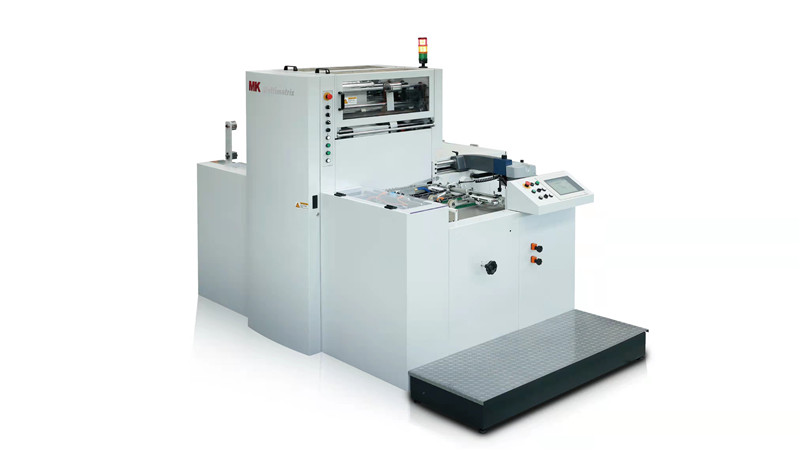

Multimatrix 60C is a small die-cutting machine and hot stamping machine developed by MK for commercial printing and custom printing. The floor area is only 6 square meters, so that high-performance equipment is no longer limited by the floor space.
At the same time, it is also a hot stamping machine, which can print out the pattern you want by folding cartons for hot stamping and embossing, which reflects MK's high-quality post-press processing level in the field of commercial printing. This comprehensive small die-cutting machine can cut paper with a format of 600×450mm, with a working pressure of 80 tons and a speed of 5500 seconds/hour, comparable to large printing machines. It is also equipped with a quick-change honeycomb board, which saves the time of switching between hot stamping and die-cutting, and greatly improves productivity!
Application field of small die cutting machine:
Multimatrix 60C small die cutting machine can be widely used in many fields. In the packaging industry, it can efficiently cut and die-cut various packaging materials, such as packaging boxes, color boxes and cartons, ensuring production efficiency and quality. In addition, it is also suitable for crafts and gift making, used to make various decorations, greeting cards, and creative products such as decoupage. No matter the application, this small die cutter can meet different manufacturing needs with fast speed and precise cutting ability.
+
