Feeding Section

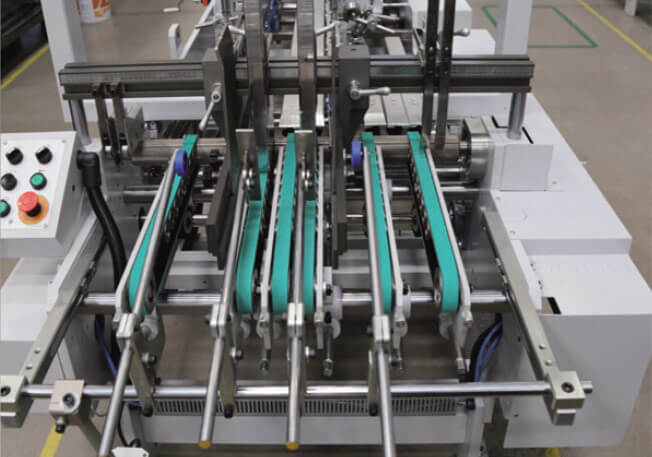

Adopts high strength vibrating motor,feeding by vibrating more stable;

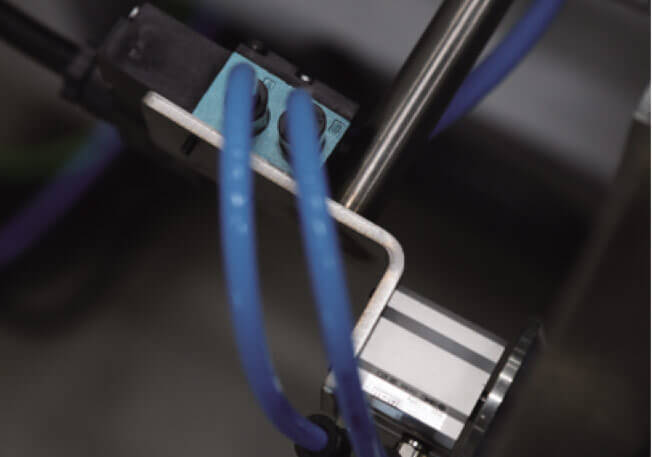

Feeding accessories adopt special profile structure, pneumatic adjusting the up and down, easy to operate.
Pre-folding Section
Long distance passing realizes the pre-folding of 180° at the first folding line and 135° at the third folding line,make it easy to unfold when filling in.

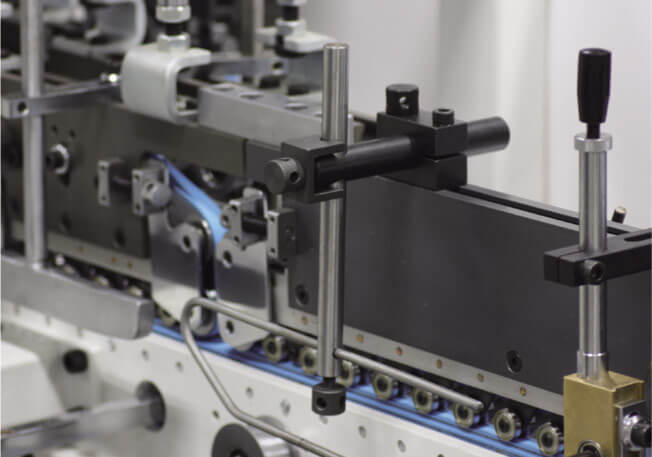

Adopt aluminum profile with surface enhanced treatment, light and strong,easy to position,fast to adjust, increasing the installation convenience.
Lock Bottom Section
Additional modules can be added according to customer's requirement,high flexibility, multiple function;
Modular design, reserve the position of back folding servo system, the adjusting parameters are calculated from the human interface, easy and fast;
Injection box accessories can be an option.
Folding Section

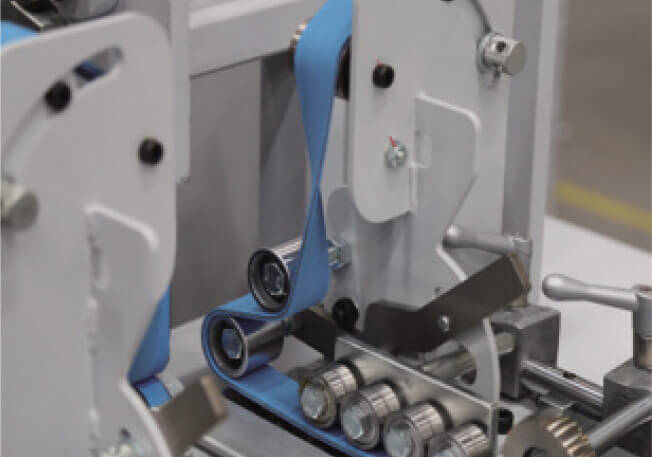

The speed of folding belt can be adjusted, the folding trumpet can be completely avoided.
Compression Section
Self-developed high speed counting control unit, accurate and easy to operate.
Delivery Section

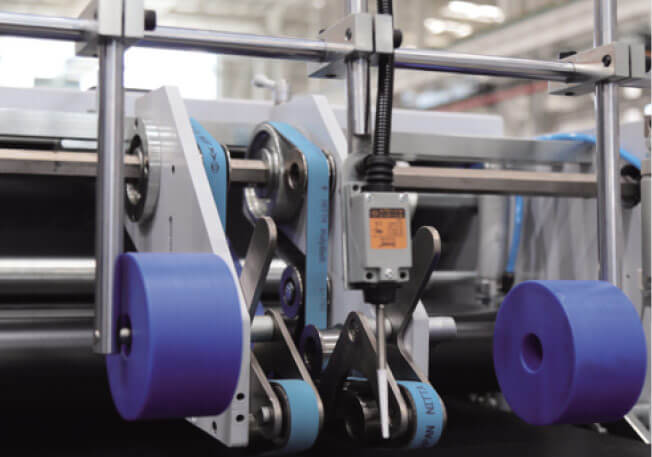

Pneumatically adjust the pressure to meet different overlap requirement;
Drive belt collection, can be adjusted separately according to the jobs to realize perfect stacking;
The operator can adjust the delivery speed according to the packing speed.

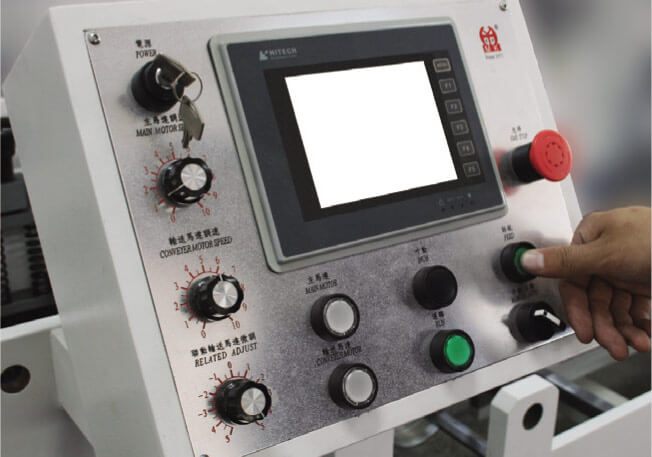

Human Interface
Adopts PLC control and HMl to realize function section cooperation,automatically detect and recognize the box length, machine running condition and faults prompt.

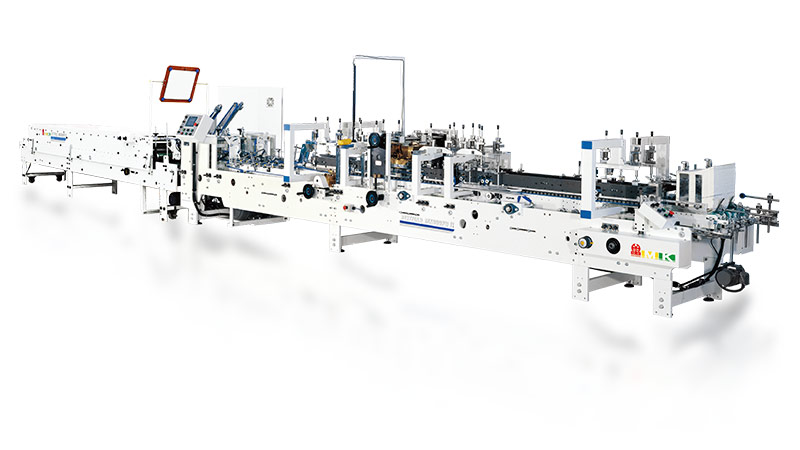

Overall dimension(mm) | 14800x2010x2000 |
| Weight | 7300 |
Max.linear speed | 400m/Min |
| Paper | 200-800g/m2 cardboard, N/E/F flute fine corrugated paper |
| Max. Size(mm) | 800x800 |
| Min. Size(mm) | 140x90 *90x90 |
| Boxes | Straight line box, Double wall box, Crash lock bottom box,4/6 corner box,Partition box etc. |
| Rated power | 13KW 17Kw(when add back folding options) |
Full loading power | 15KW 20KW(when add back folding options) |
Motor power | 11KW |
Air source | 0.5~0.7MPa ≥0.32m3/min |
Glue | solvent quick-drying glue suitable for high speed automatic folder gluer |
