Paper feeding unit
High-end offset press feeder, stable paper feeding in horizontal and vertical directions
Feeding table has a simple structure, convenient and adjustable, flexible and efficient, applicable to various materials.

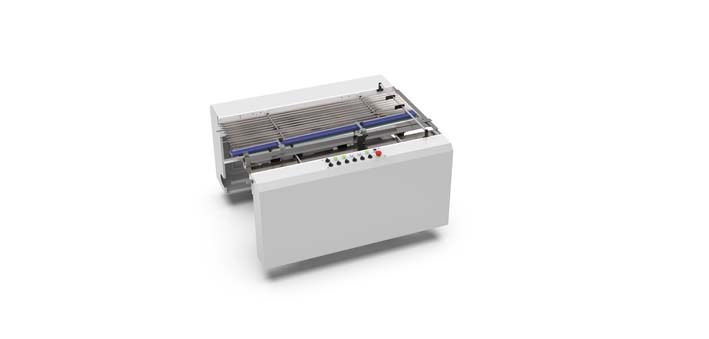

High-precision side lay positioning
Guide side pull lay technology, high-precision positioning
Adjust the belt steering according to the paper gauge with a large correction range, flexibly applicable to various papers
Motor control, paper feeding smooth and stable

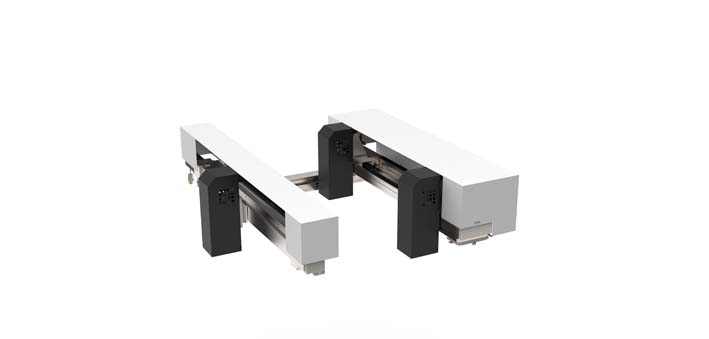

Visual digital positioning and scaling technology
Use high-resolution industrial cameras to identify target contours and positioning points, and capture paper stretching deformation in real time．
Use edge detection algorithm to calculate the deviation value between the target and the preset position, and realize digital compensation
Through "software and hardware collaboration", the image is adjusted in real time and dynamically, and the printing displacement and speed are corrected to eliminate position deviation and ensure high-precision registration

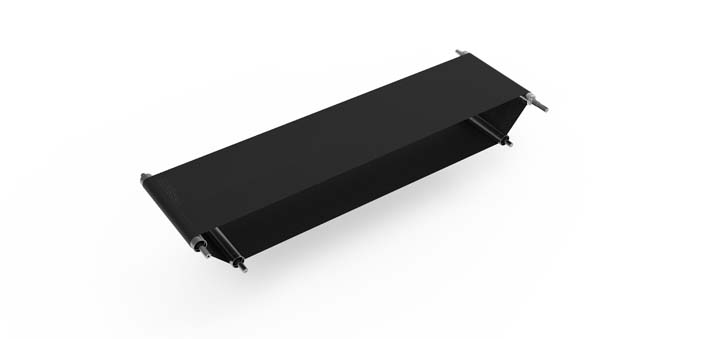

Intelligent air chamber vacuum suction platform
Germany conveyor belts to suck various formats of paper, more stable
Adopt air chamber design, with vacuum fan, strong flow, uniform and adjustable air volume, to ensure paper running smoothly

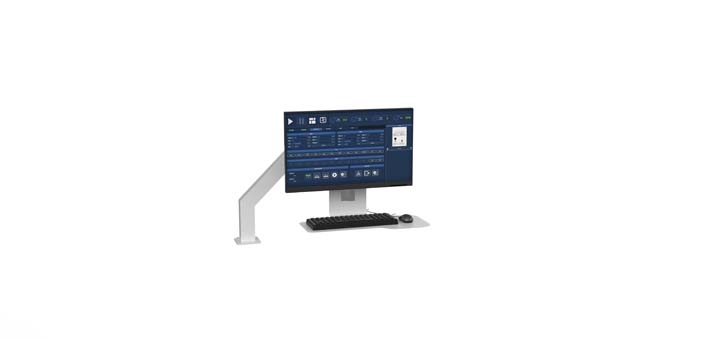

Image processing software
Using grayscale control algorithm to process images in multiple levels, realizing UV effects such as three-dimensional gradient of different thicknesses
Variable ink droplets control technology, improving resolution while realizing multi-level ink droplet precise stacking, smoothing edges and reducing jaggedness
Linking with visual positioning system to realize automatic image correction and alignment, ensure accurate positioning between multiple processes

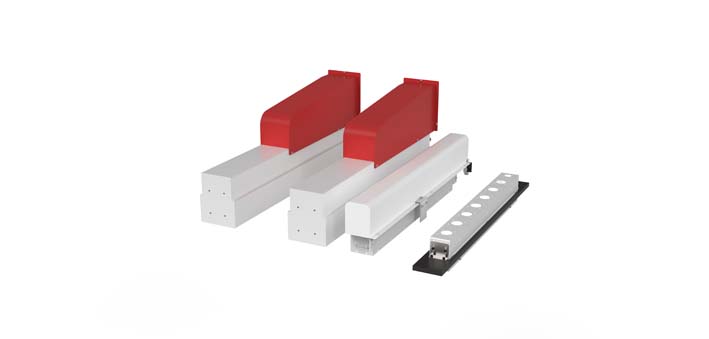

Multi-level efficient curing system
Using multiple groups of LED UV lamp and mercury lamp combined curing, each group of curing is controlled separately, start and stop according to process needs, high efficiency and energy saving
Curing lamp and platform linkage control, prevent paper blocking, prevent fire, ensure safety
Adopt high temperature resistant vacuum suction belt, safe, stable and reliable
Extremely long service life, the curing lamp has a timing function to monitor the service life

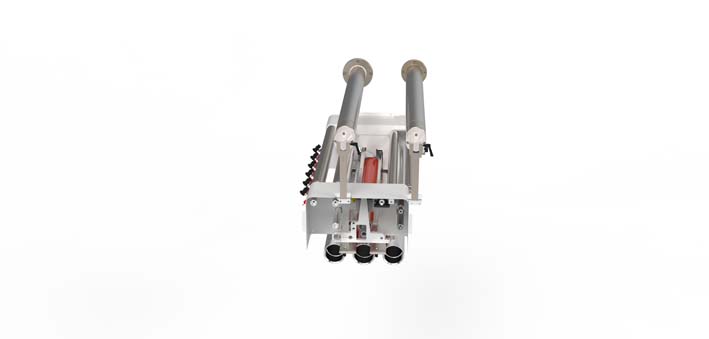

Rotary cold foil unit
Rotary cold foil structure with skipping function
The installation shaft of the material unwinder and rewinder uses slip shaft, foil tension is stable, and the loading and unloading of materials is convenient and fast.
The rewinding motor adopts variable frequency drive to reduce the wear of the slip shaft and increase the service life of parts

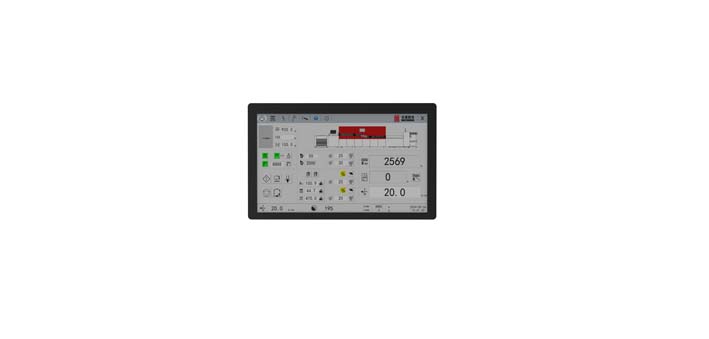

Multi-function integrated control software
highly integrated with platform control and multi-function modules such as curing lamp, hot stamping, easy operation and linkage
The software integrates motion control, logic control and other functions into a single controller to realize real-time data processing and process optimization

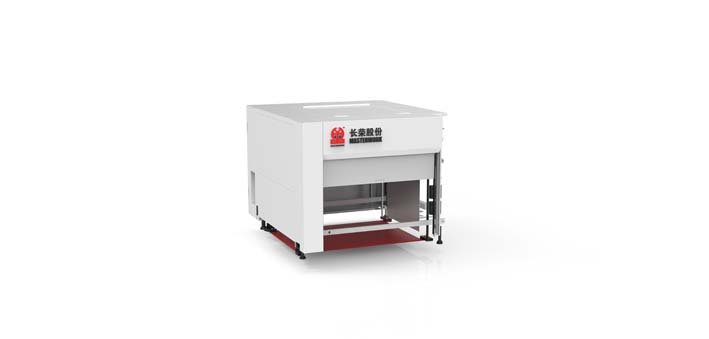

Delivery unit
The paper delivered from operation side, an openable sample table equipped on the top, convenient and fast
The paper aligning device is automatically controlled, the paper delivery neat and stable

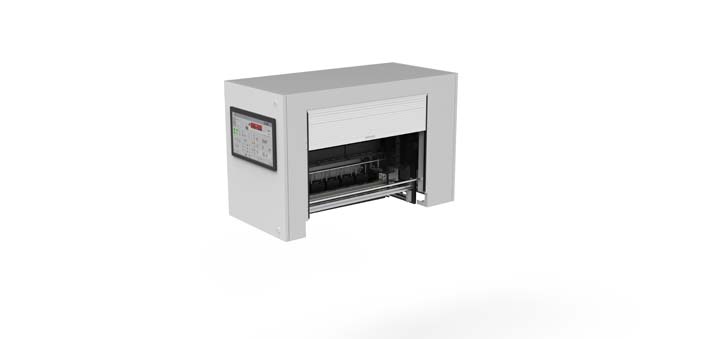

High-precision digital inkjet system
Inkjet on demand technology, achieve no screen print, no stamping dies digital UV and enhanced hot stamping effects
One type of varnish realizes various kinds of 2D/3D enhancement effects, such as digital hot stamping, digital UV, laser, braille, crystal relief, embossing after hot stamping.
Large flow circulation ink supply, realizing 24-hour continuous and stable production
One-button cleaning, waste ink is automatically collected into the waste ink box after the nozzle is cleaned
Unique patented design of nozzle protection bottom plate, avoiding electrostatic interference and physical impact, effectively protect the nozzle.
| Core parameters of digital inkjet system | |
| Machine model | MK920DVF |
| Maximum inkjet speed | 60m/min |
| Optimal production speed | 15-25m/min |
| Inkjet nozzle technology | Fuji Starlight |
| Inkjet Printing width | 515mm(expandable) |
| Resolution | 400x400dpi |
| Inkjet Printing height | 0.1-0.3mm |
| Registration accuracy | ±0.1mm |
| Ink supply system | Circulating ink supply |
| Cleaning and maintenance | One-touch graded cleaning and maintenance |
| Inkjet nozzle unit | 8 groups, expandable |
| Positioning method | Color bar, side pull lay positioning, 3-cameradigital positioning and zooming technology |
| Inkjet nozzle life | About 2-3 years |
| Ink type | UV varnish |
| Printing materials | Coated paper, gold and silver cardboardlaser paper, PET, bright film, matte film,touch film and other substrates |
| UPS | Uninterruptible voltage stabilized power supply |
| Software system | Masterwork digital inkjet system,independent research and development,convenient and fast |
| Core parameters of paper running platform | |
| Machine model | MK920DVF |
| Paper format | Max: 920x620mm Min:420x297mm |
| Optinal production speed | 15-25m/min |
| Paper weight | 100~500g/㎡ |
| Positioning accuracy | 士0.1mm |
| Paper feeding method | Feeder |
| Platform maximum running speed | 60m/min |
| Paper feeding pile height | 850mm (includingwooden pallet) |
| Paper delivery pile height | 650mm (includingwooden pallet) |
| Paper delivery structure | Operation side paper delivery, openablesample table on the top |
| Image positioning method | 3-camera digital positioning and zoomingtechnology |
| Drying method | UV、LED |
| Number of foil rolls | 6 |
| Foil width range | 50-610mm |
| Foil roll core size | 3in |
| Hot stamping form | Rotary (cold foil) |
| Whether to support skip hot stamping | Yes |
| Anti-blocking paper | Vacuum suction belt design |
| Full load power | 50KW |
| Machine weight | About 5T |
| Equipment voltage | 380V |
| Air source requirements | 0.6~0.8Mpa,flow rate>0.5m³/min |
| Machine size | 9.9*3.6*1.8m(length*width*height) |
