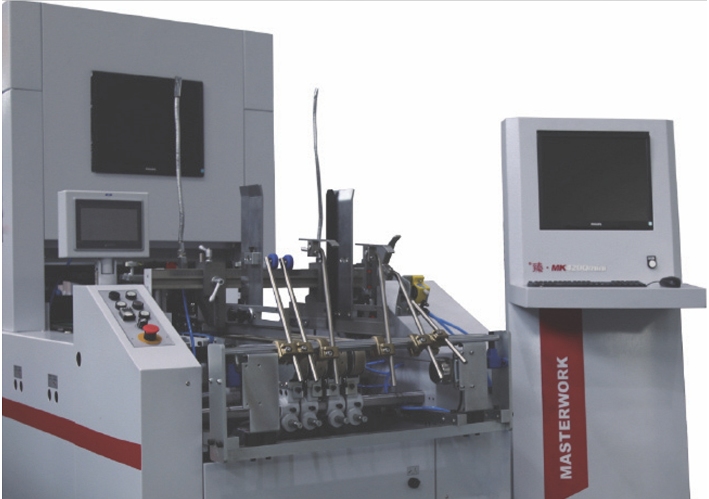

Feeding Section
Stable feeding belts, optional vacuum belt
User-friendly color touch screen
Patented feeding knife
Vibration + air-blowing conveying system
24-inch system display screen

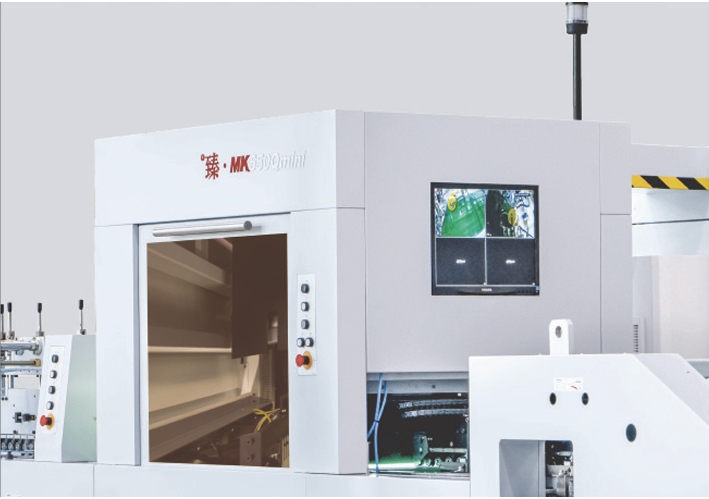

Inspection Section
Ultrasonic double-sheet detection
Independently developed inspection system—Qingmo Vision
Multi-split hardware configuration- all models equipped with 8K cameras
Light source adjustable via software control
Flexible configuration to suit various product types
Product alignment device
Optional suction via fan or vacuum pump

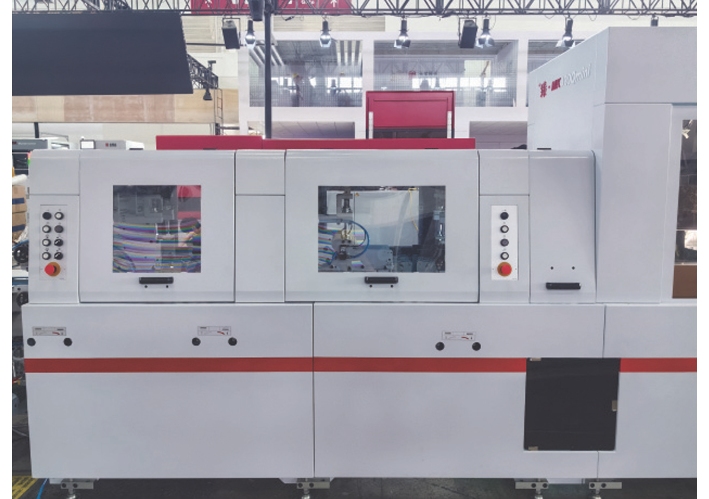

Ejection Section
Smooth defective product ejection channel
Optional mechanical or blowing ejection methods
Open adjustment mechanism
Paper jam detection device
Safety noise-reduction protective cover

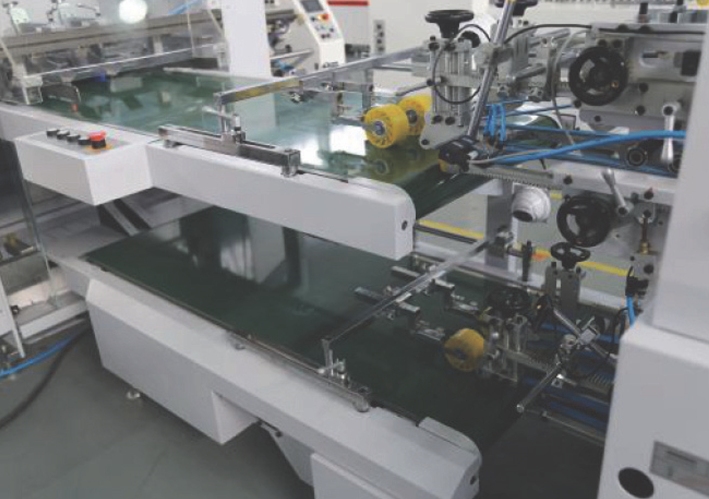

Finished Products and waste delivery Section
Scaly-paper delivery platform for both finished products and waste,easy to optional stacking unit with delivery towards operation side
Unique pressing roller structure
Monitoring camera for finished products and waste delivery

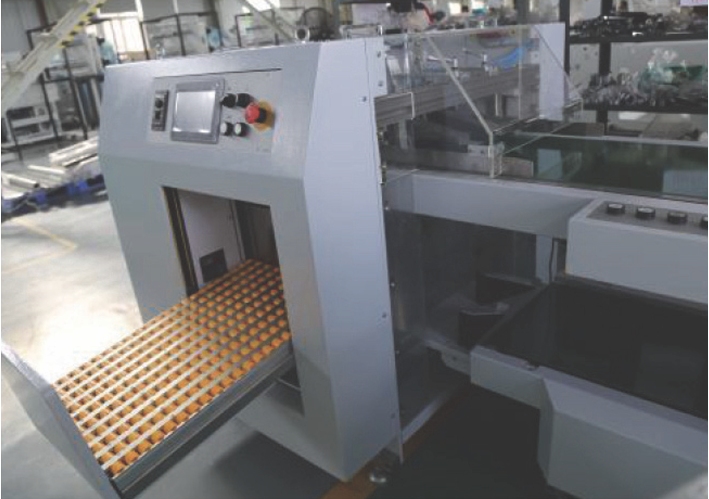

Stacking unit with delivery towards operation side(Optional)
Mechanical paper alignment and delivery device
Paper size adjustment device
Mechanical pin insert paper counting device
Safety light curtain for stack out

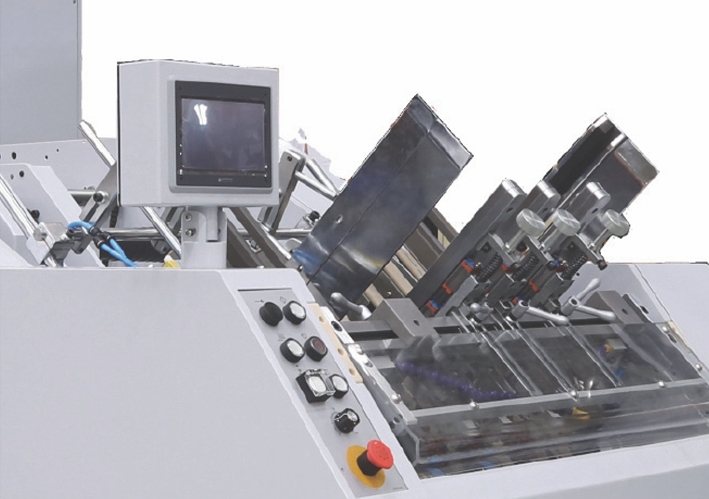

Inverted Feeding Section
Stable performance device to reduce surface scratches on products
User-friendly color touch screen
Patented feeding knife
Vibration + air-blowing conveying system
24-inch system display screen

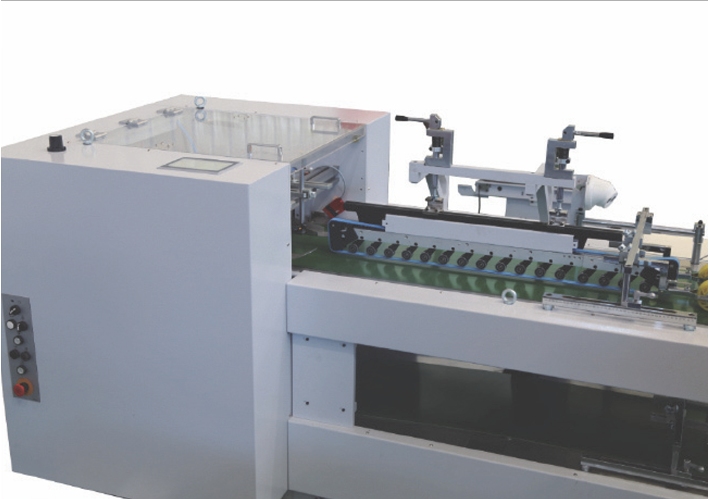

Delivery Device(Tobacco packaging)
Pneumatic paper alignment and delivery device
Paper size adjustment device
Mechanical pin insert paper counting device
Safety light curtain for stack out
Servo motor drive
Cyan Vision
Brand-new Inspection System: "Qingmo"
High Integration-One IPC controls five cameras.
High Resolution-All models basically equipped with 8K cameras.
High Processing Speed-The main IPC directly controls the cameras without auxiliary IPC.
Efficient Interface Layout-A cleaner and more logical interface design highlights defective product images.
Efficient Modeling-Optimized modeling process reduces time by over 30% compared to older systems; modeling time for conventional social packaging products is ≤5 minutes. With deep learning integration, the number of error samples needed for standard products is ≤5 sheets.
High Intelligence -The software automatically identifies inspection zones based on the product and generates inspection and error detection areas.

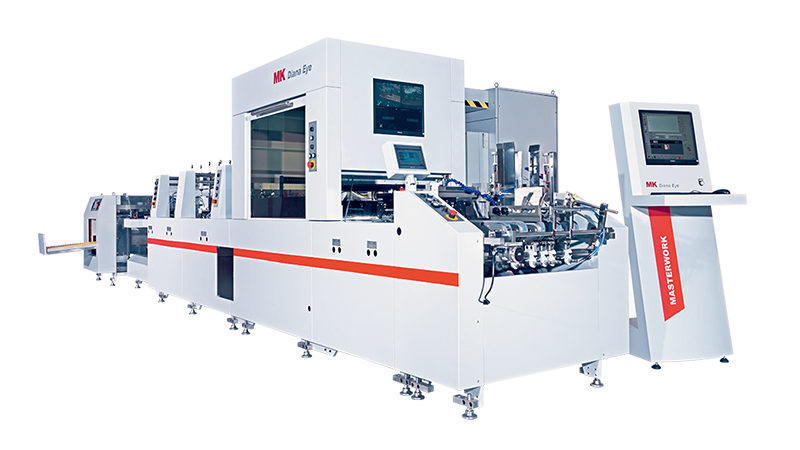

Customers in various industries are constantly raising their product quality standards. In the fields of pharmaceutical and tobacco packaging, product quality is especially critical. As the process design of high-end products becomes increasingly complex and more quality standards related to life safety are introduced, manual inspection can no longer meet the requirements.Masterwork,leveraging its own patented technology and years of experience in the production of inspection equipment, has introduced a brand-new solution to meet the high-quality product inspection demands, and offers full machine GS certification.
| Parameters | MK Diana Eye 42 | MK Diana Eye 55 |
| Applicable Paper | 90~650g/㎡ | 90~650g/㎡ |
| Max. Line Speed | 300m/min | 300m/min |
| Max. Production Efficiency | 120,000 s/hour (running direction box length 98mm) | 120,000 s/hour (running direction box length 98mm) |
| Max. Sheet Size | 420mmx350mm | 550mmx500mm |
| Min. Sheet Size | 70mmx70mm | 90mmx90mm |
| Min. Punctiform Detection | 0.1mm² (contrast >30) | 0.15mm² (contrast >30) |
| Min. filiform Detection | 0.2mmX5mm (contrast >30) | 0.25mmX5mm (contrast >30) |
| Allowable min. color difference(△E) | (△E)>2.5 | (△E)>2.5 |
| Feeding Pile Height | 300mm | 300mm |
| Delivery Pile Height | 200mm (with optional finished product stack delivery) | 200mm (with optional finished product stack delivery) |
| Main Motor Power | 7.5KW | 7.5KW |
| Rated Power | 16KW | 16KW |
| Full Load Power | 20KW | 20KW |
| Air Supply | 0.5~0.7MPa,≥0.5m³/min | 0.5~0.7MPa,≥0.5m³/min |
| Overall Dimensions | 7472mmx2735mmx2025mm (Standard feeder + fish scale delivery) | 7472mmx2900mmx2025mm (Standard feeder + fish scale delivery) |
| (L x W x H) | 7970mmx2735mmx2025mm (Standard feeder+ Stacking unit with delivery towards operation side) | 7970mmx2900mmx2025mm (Standard feeder+ Stacking unitwith delivery towards operation side) |
| 8000mmx2735mmX2025mm (Standard feeder+Delivery for tobacco boxes) | ||
| Machine Weight | 5.5T(Standard feeder + fish scale delivery) | 6T(Standard feeder + fish scale delivery) |
| 6T (Standard feeder+Stacking unit with delivery towards operation side) | 6.5T (Standard feeder+ Stacking unitwith delivery towards operation side) | |
| Standard feeder + delivery for tobacco boxes | ||
| Camera Specifications | ||
| Resolution | Frame Frequency | Frame Frequency |
| 8K Color Camera | 66KHZ | 66KHZ |
| 4K High-Speed Color Camera | 40KHZ | 40KHZ |
| 8K B/W Camera | 80KHZ | 80KHZ |
| Area Color Camera | 60KHZ | 60KHZ |
