Systems
Computer screen;
Intuitive and simple operation panel;
CE standards.

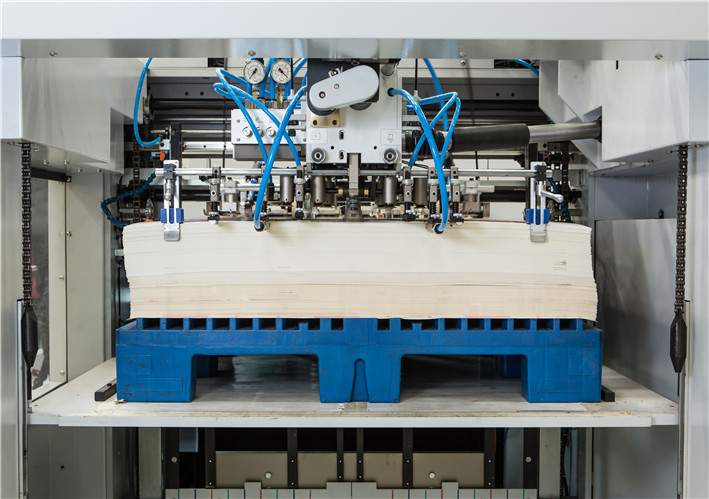

Non-stop Feeder
Strong suction feeder head;
Quick positioning system and fine adjustment
feeder head;
Stack pile and side blower left and right
electric adjustment device.
Feed Table
Push-pull side lay;
Vacuum feed table;
Ultrasonic double sheet detection;
Multi-dimensionally adjustable front lay
positioning system;
Front and side lay both use paper photoelectric detection.

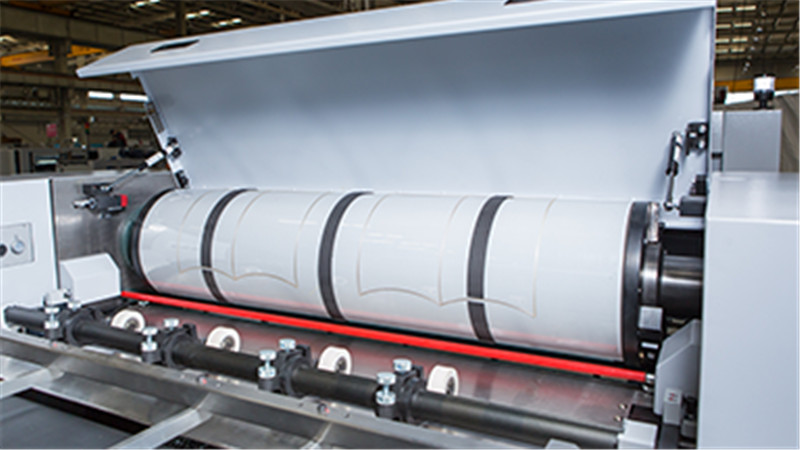

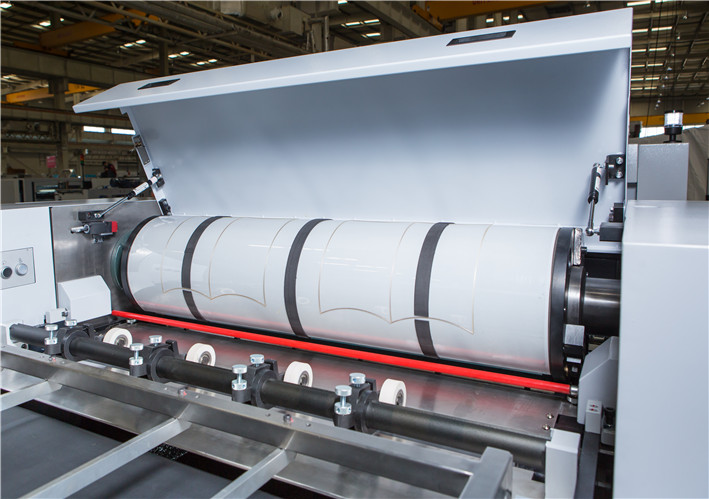

Creasing Nuit
Round pressing process;
Upper and lower creasing plate could interchangable;
3D digital offline creasing board making.
Transition Speed Shift Structure
Servo motor control, dynamic response;
Real-time speed matching;
Two-way pneumatic locking device.
Laser Cutting Unit
Movable video positioning;
Three laser parallel control structures,
multiple laser cutting at same time;
Forward and reverse video positioning mechanism;
Exhaust;
Automatic steel belt cleaning system.

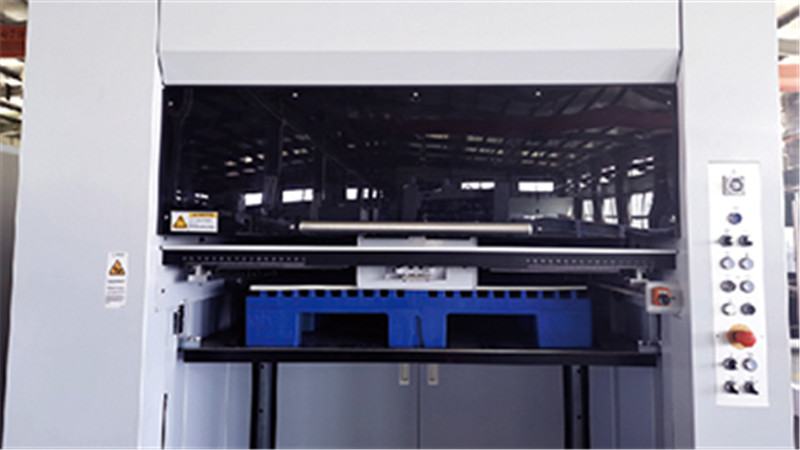

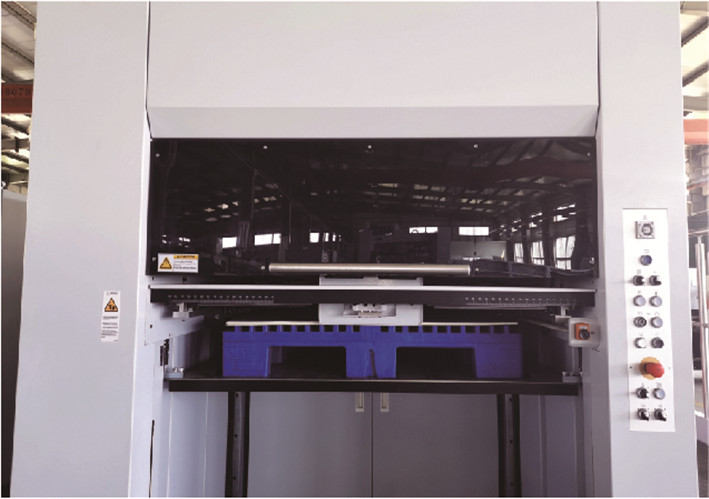

Delivery Unit
Pneumatic paper aligning device;
Pneumatic sample take out mechanism;
Upper suction belt paper delivery mechanism;
Paper size adjustment device with digital display;
Movable paper delivery air suction device.
| Technical Specifications : | Digimatrix 106LR |
| Design Type : | Sheet-Fed/Flying Mode |
| Sheet Size : | Max:1060mmX760mm;Min:400X350mm |
| Application Materials : | Cardboard, Cut-ready sheet |
| Light Source : | CO2 |
| Laser energy : | 500W/1000W*3 |
| Positioning Method : | Video capture |
| Input File : | PLT,DXF |
| Power Supply : | AC380V+N+PE 50Hz 30KW |
| Working Environment : | T25±2°C, RH40%-60% |
| Net Weight : | 5000KG |
| Machine Dimension : | 9500mmX5100mmX2254mm |
For more information, please download the PDF brochure, or click "Contact" to subscribe
