LC340S/SR

LC340S/SR is mainly used in the laser cutting for customized paperboard in octavo or smaller, like gift box, greeting card, invitation card and postal card, etc. It can interact seamlessly with digital printing equipment to realize the whole digitalized process and to lead the future of industrialized digital printing.


  • Product Features
  • Technical Parameter
  • PDF Brochure
  • Product Video

Digitalization

Digitalization

.

Rapid replacement of different cutting images by computer, not only meets the personalized demands, but suits for short run (digital ) printing jobs and post-press processing of large format imposition printing jobs.

High Precision

High Precision

.

Automatic laser cutting and engraving guarantee zero vibration deviation. Video capture technology minimizes the sheet feeding clearance, meanwhile ensures cutting precision.

High Efficient

High Efficient

.

To replace and upgrade traditional mechanical die cutting by laser cutting, save the time for producing and adjusting of traditional cutting dies.

Affordable Cost

Affordable Cost

.

Model to cut graphics and characters arbitrarily is controlled by computer, mechanical cutting die is not required, operation and maintenance cost is less.

Technical Specifications:LC340S/SR
Design Type:Sheet-Fed
Max. Sheet Size:483mmX340mm
Light Source:CO2
Laser energy:180W
Positioning Method:Video Capture
Input File:PLT, DXF
Power Supply:AC220V 50Hz 5-8KW
Working Environment:T25±2°C, RH40%-60%
Net Weight:800KG
Machine Dimension:2000mmX2100mmX 1800mm

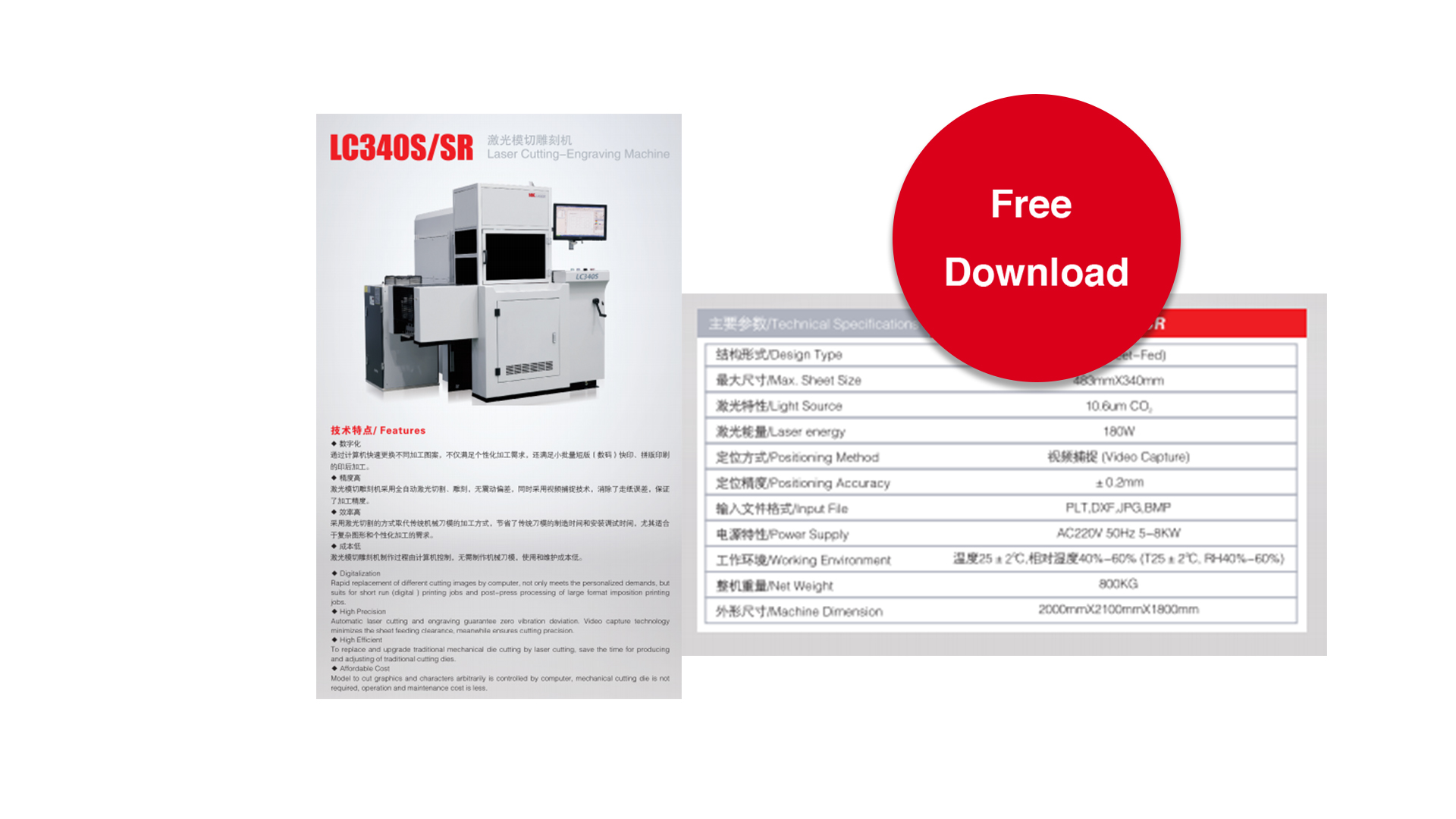

For more information, please download the PDF brochure, or click "Contact" to subscribe

Click Download

For more information, please download the PDF brochure, or click "Contact" to subscribe
